Socket Weld Flanges

Socket Weld Flanges (SW Flanges) are similar to slip-on flanges in outline, but the bore is counter-bored to accept pipe. The diameter of the remaining bore is the same as the inside diameter of the pipe. The Socket Welding Flange is attached to the pipe by a fillet weld around the hub of the flange. An optional internal weld may be applied in high stress applications. The Socket Flanges' biggest use is in high pressure systems such as hydraulic and steam lines.

Socket Weld Flange / Fittings manufacturer Landee supplies Socket Welded Flanges, SW Flange, Socket welding Fittings, Socket Flanges in forged steel, Stainless Steel, alloy steel, etc.

Socket Weld Flanges Products List

ASTM A182 F316 SW Flanges, Class 150, 2 Inch, SCH 40, RF
Request a quote

LD 17 SWF 02

China ASTM A182 F316 SW Flanges Manufaturer Landee Provides ASTM A182 F316 SW Flanges, Class 150 LB, 2 Inch, SCH 40, Raised Face (RF) Ends.

ASTM A182 F304L SW Flange, Class 300, 1 Inch, SCH 40, RF Ends
Request a quote

LD 17 SWF 01

China ASTM A182 F304L SW Flange Factory Landee Offers ASTM A182 F304L SW Flange, Class Rating 300 LB, 1 Inch, Thickness SCH 40, RF Ends.

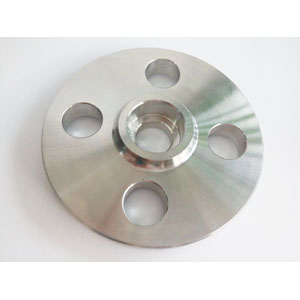

Socket Weld Flange, 2 1/2 Inch, 150#, A182 F316
Request a quote

LD 15 SWF 01

China Socket Weld Flange Supplier Landee Offers Socket Welded Flange, 2 1/2 Inch, 150 LB, ASTM A182 F316, WT SCH 40, Flanged Raised Face Ends.

Socket Welding Flanges
Request a quote

LD 013-FL18

Socket Welding Flange Manufacturer Landee Supplies Socket Welding Flanges (SWRF), SW Flanges, Available in ANSI, BS, JIS, UNI, MSS and SP Standards.
