Key Specifications / Features

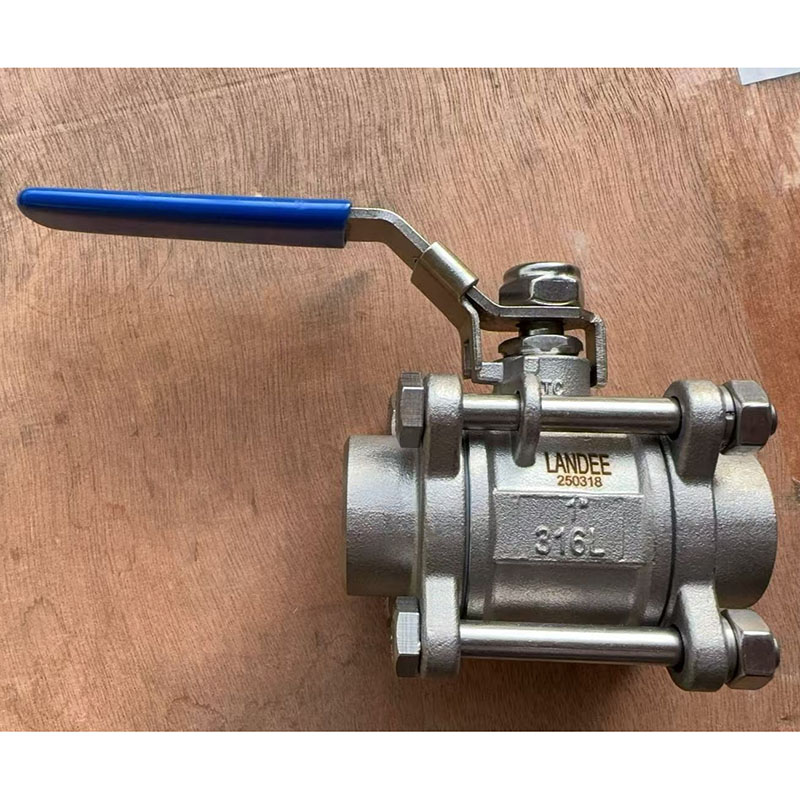

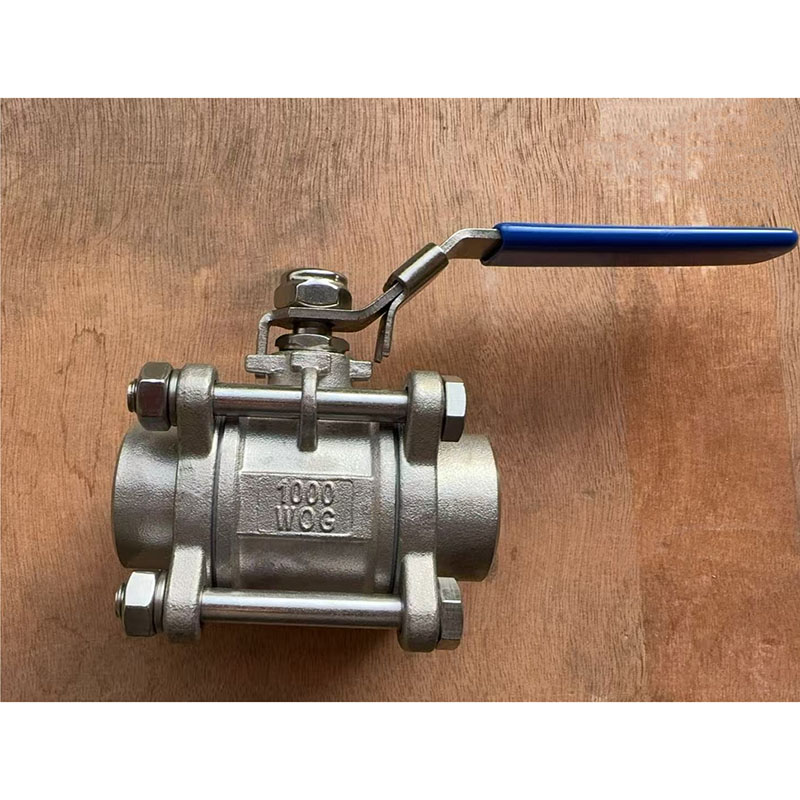

This China-manufactured 3-piece ball valve features ASTM A351 CF3M (SS 316L) stainless steel construction, offering excellent corrosion resistance for demanding industrial applications. The 1-inch (DN25/25mm) valve handles up to 1000 WOG pressure and uses butt weld ends for secure, leak-free pipeline connections. Its lever-operated design ensures quick, reliable flow control with simple quarter-turn operation.
- Model No.: LD-20260403-BAV-01
- Hits: 0
- Categories: Ball Valves
- Tags: ASTM A351 CF3M Ball Valve, 3 Piece Ball Valve, 1000 WOG Ball Valve
Detail Information
Product Name: Stainless Steel Ball Valve
Type: 3-Piece Ball Valve
Body Material: ASTM A351 CF3M (SS 316L)
Size: 1 Inch, DN25, 25 mm
Pressure Rating: 1000 WOG
End Connection: Butt Weld (BW)
Operation: Lever
