Key Specifications / Features

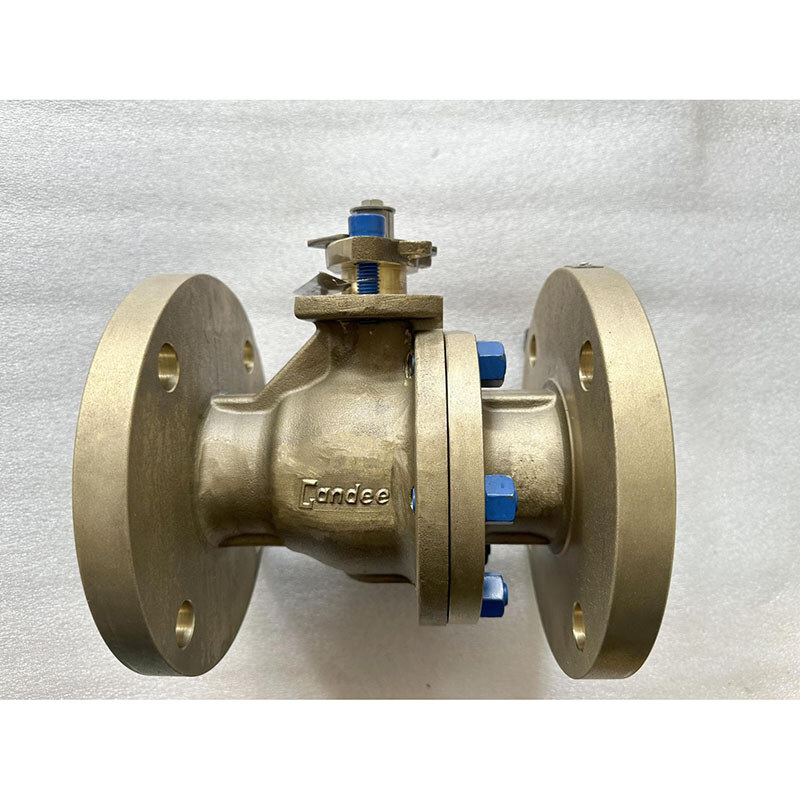

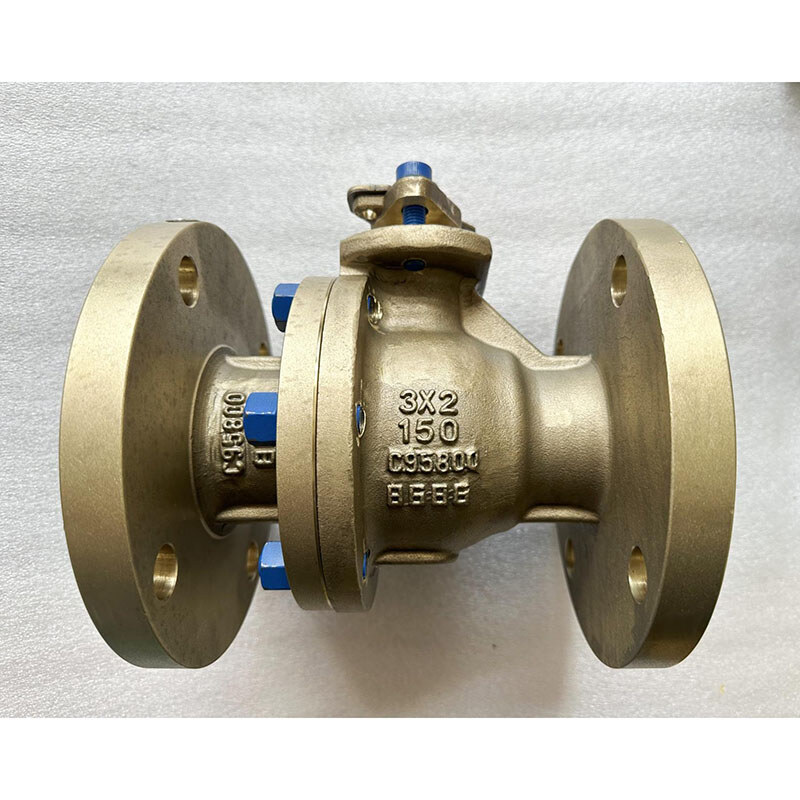

This reduced passage ball valve is manufactured at an aluminum bronze plant to API 6D standards. The body and bonnet are cast from ASTM B148 C95800 aluminum bronze. The ball is made from ASTM B150 UNS C63200 aluminum bronze for wear resistance. The valve size is 3 × 2 inch with a pressure class of 150 LB. It is designed for seawater, offshore, and corrosive fluid applications.
- Model No.: LD-20260529-BAV-01
- Hits: 0
- Categories: Ball Valves
- Tags: Aluminum Bronze Ball Valve, ASTM B148 C95800 Ball Valve, Reduced Bore Ball Valve
Detail Information
Product Name: Aluminum Bronze Ball Valves
Type: Ball Valve
Standard: API 6D
Size: 3 Inch * 2 Inch, DN80*DN50
Pressure Rating: Class 150 LB, PN20
Body and Bonnet Material: ASTM B148 C95800
Ball Material: ASTM B150 UNS C63200
Stem Material: Monel K500
Seat Ring Material: RPTFE
Connection Ends: FF Flanged, ASME B16.5
Featueres: Reduced Passage, Bolted Design, Side Inlet (2-Piece), Antistatic Design, Blow-Out Proof Stem Design
