Key Specifications / Features

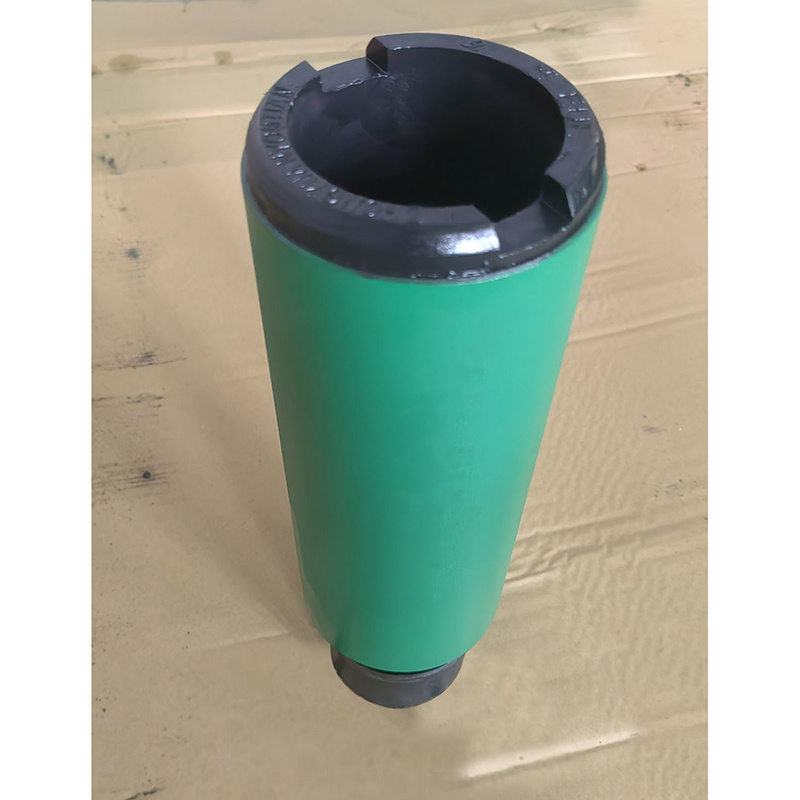

This API 5CT Grade J55 tubing crossover is a carbon steel connector designed to join pipes of different sizes and thread types. It measures 2-3/8 inches on one end and 3-1/2 inches on the other, with a length of 1 foot. One end features an EU (External Upset) pin, while the opposite end has an 8RD EUE (8-Round External Upset End) box connection. This crossover is built for oil and gas well applications where casing or tubing strings require size or thread transitions.
- Model No.: LD-20260515-OPF-01
- Hits: 0
- Categories: Other Fittings
- Tags: Carbon Steel Tubing Crossover, API 5CT Grade J55 Tubing Crossover
Detail Information
Product Name: API 5CT Grade J55 Tubing Crossover
Type: Cross Over
Material: API 5CT Grade J55
Size: 2-3/8 Inch * 3-1/2 Inch
Length: 1 FT
Pipe Weight: 4.7 PPF
Ends: EU Pin * 8RD EUE Box
Application: Oilfield Tubing Connection, Drill String Adaptation
