Key Specifications / Features

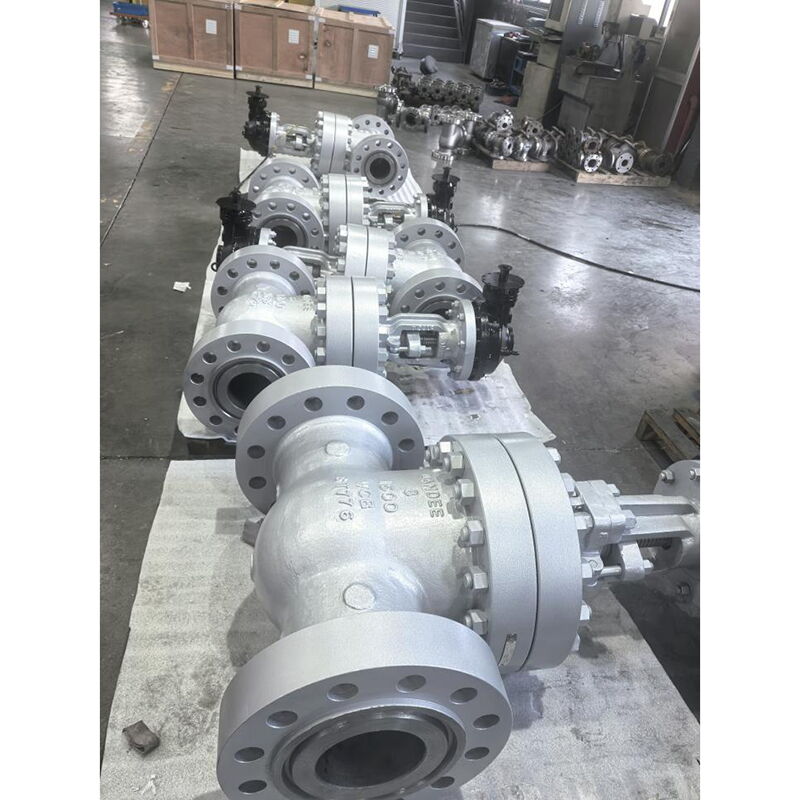

The China API 600 Gate Valves Supplier offers a high-quality 200 mm gate valve designed for industrial applications. This valve features an ASTM A216 WCB body, providing excellent strength and durability. The trim is made from ASTM A182 F316L, ensuring corrosion resistance and reliability. The valve is sized at 8 inches (DN200) and rated for Class 1500 LB pressure, with a nominal pressure of PN250. It comes with RF (raised face) flanged ends for secure and leak-free connections.
- Model No.: LD-20260119-GTV-01
- Hits: 12
- Categories: Gate Valves
- Tags: ASTM A216 WCB Gate Valve, API 600 Gate Valve, 8 Inch Gate Valve
Detail Information
Product Name: API 600 Gate Valves
Type: Gate Valve
Design Standard: API 600
Body Material: ASTM A216 WCB
Trim Material: ASTM A182 F316L
Size: 8 Inch, DN200, 200 mm
Pressure Rating: Class 1500 LB, PN250
End Connection: RF Flanged
External Coating: Silver Gray Painting
