Key Specifications / Features

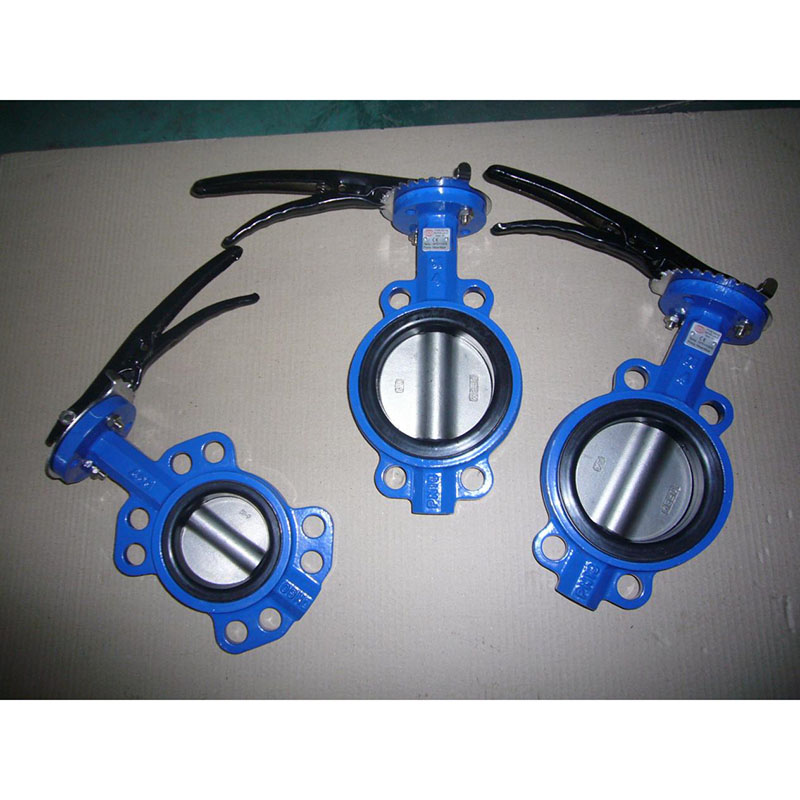

API 609 Wafer Butterfly Valves Factory manufactures high-performance wafer-type butterfly valves for flow control applications. This 100 mm (DN100 / 4 inch) valve features a ductile iron body for strength and durability, paired with an ASTM A351 CF8M stainless steel disc for superior corrosion resistance. Rated at PN16 and Class 150 LB, it suits diverse pressure requirements across global markets. The lever-operated design enables quick, quarter-turn operation for efficient on/off or throttling service.
- Model No.: LD-20260328-BFV-01
- Hits: 0
- Categories: Butterfly Valves
- Tags: Wafer Butterfly Valve, Ductile Iron Butterfly Valve, API 609 Butterfly Valve
Detail Information
Product Name: API 609 Wafer Butterfly Valves
Type: Wafer Type Butterfly Valve
Standard: API 609
Nominal Size: DN100, 100 mm, 4 Inch
Pressure Rating: PN16, Class 150 LB
Body Material: Ductile Iron (DI)
Disc Material: ASTM A351 CF8M
Seat Material: EPDM
End Connection: Wafer Type
Operation: Lever Operated with Locking Device
