Key Specifications / Features
The China API 6A Ball Valve Plant offers a top-entry ball valve designed for high-pressure applications. This valve features a 4-1/16 inch size and a robust 3000 PSI rating, ensuring durability and reliability. It is equipped with 13% chromium trim, providing excellent corrosion resistance, and meets the stringent NACE MR 0175 standard for sour service environments. The trunnion-mounted design with double block and bleed (DBB) functionality enhances safety and control. The valve also features ring-type joint (RTJ) flanged ends.
- Model No.: LD-20251201-BAV-01
- Hits: 20
- Categories: Ball Valves
- Tags: API 6A Ball Valve, 4-1/16 Inch Ball Valve, 3000 PSI Ball Valve
Detail Information

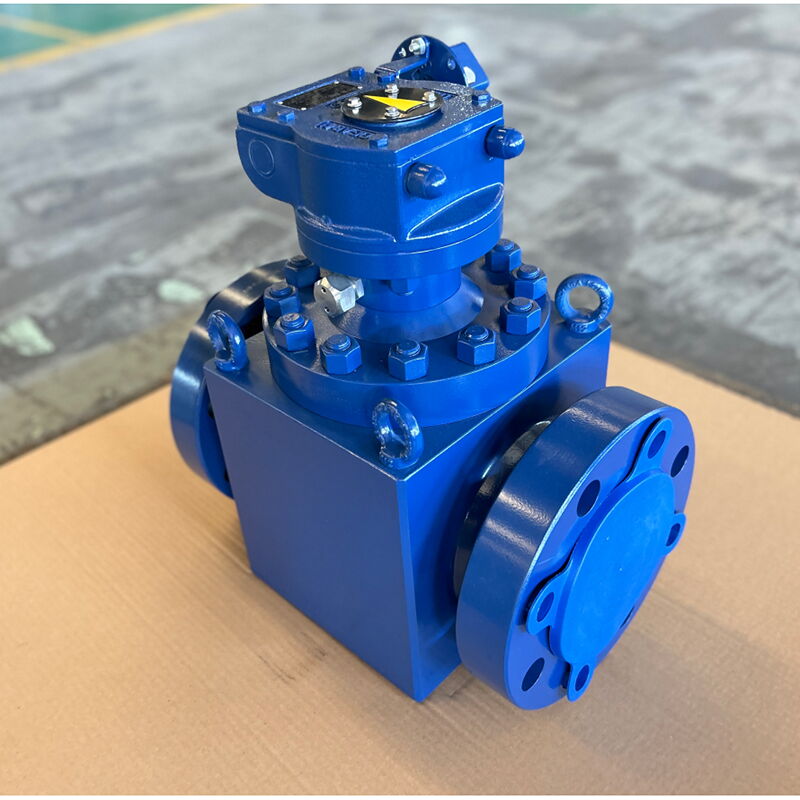

Product Name: API 6A Ball Valve, Top Entry
Type: Top Entry Ball Valve
Standard: API 6A
Size: 4-1/16 Inch
Pressure Rating: 3000 PSI
Body & Bonnet Rating: ≥60K
Trim Material: 13% Cr
Material Class: DD
Temperature Class: L
Compliance: NACE MR 0175
End Connection: RTJ Flanged
Features:
Trunnion Mounted
Double Block & Bleed
Full Bore
Single Ball, Soft Sealing
Anti-Static Design
Anti-Blowout Stem
Sealant Injection Provision
