Key Specifications / Features

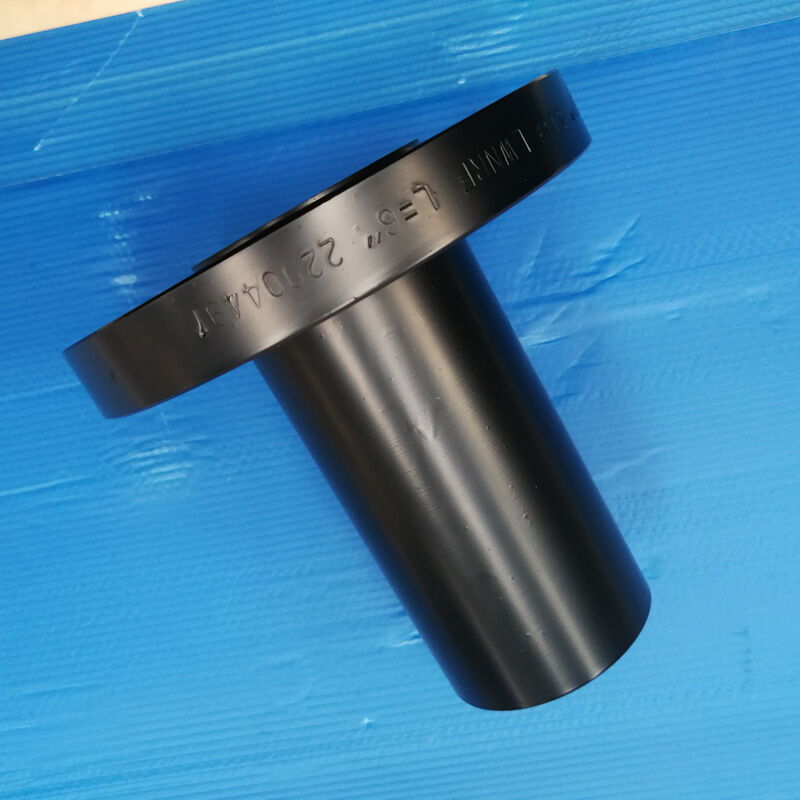

The ASTM A105 Long Weld Neck Flange is a 1-1/2 inch carbon steel flange designed for high-pressure applications with a 1500 LB pressure class and 6-inch length. It is compliant with NACE MR0175 standards, offering resistance to hydrogen-induced cracking (HIC) and hydrogen sulfide cracking (H2C), making it suitable for harsh, corrosive environments. The flange features an RTJ facing.
- Model No.: LD-20250106-WNF-01
- Hits: 37
- Categories: Weld Neck Flanges
- Tags: Long Weld Neck Flange, ASTM A105 Weld Neck Flange, 1-1/2 Inch Weld Neck Flange
Detail Information
Product Item: ASTM A105 Long Weld Neck Flange, LWN Flange
Type: Long Weld Neck Flange
Material: ASTM A105
Size: 1-1/2 Inch
Pressure: Class 1500 LB
Length: 6 Inch
Requirement: Meeting the NACE MR0175 HIC (IN-043) and H2C Requirements
Facing: RTJ
