Key Specifications / Features
This ASTM A105 thermodynamic steam trap, manufactured to GB/T 22654 standards, features a rugged carbon steel body with a hardened 20Cr13 stainless steel disc for reliable condensate discharge and positive steam lock protection. Designed with JIS 25A (DN25) flanged ends rated for JIS 10K, this thermal power steam trap operates efficiently across varying loads and pressures, utilizing cyclic disc operation to prevent steam loss while ensuring long service life in high-temperature condensate removal systems.
- Model No.: LD-20260212-OV-01
- Hits: 8
- Categories: Other Valves
- Tags: GB/T 22654 Steam Trap, ASTM A105 Steam Trap, Thermodynamic Steam Traps
Detail Information

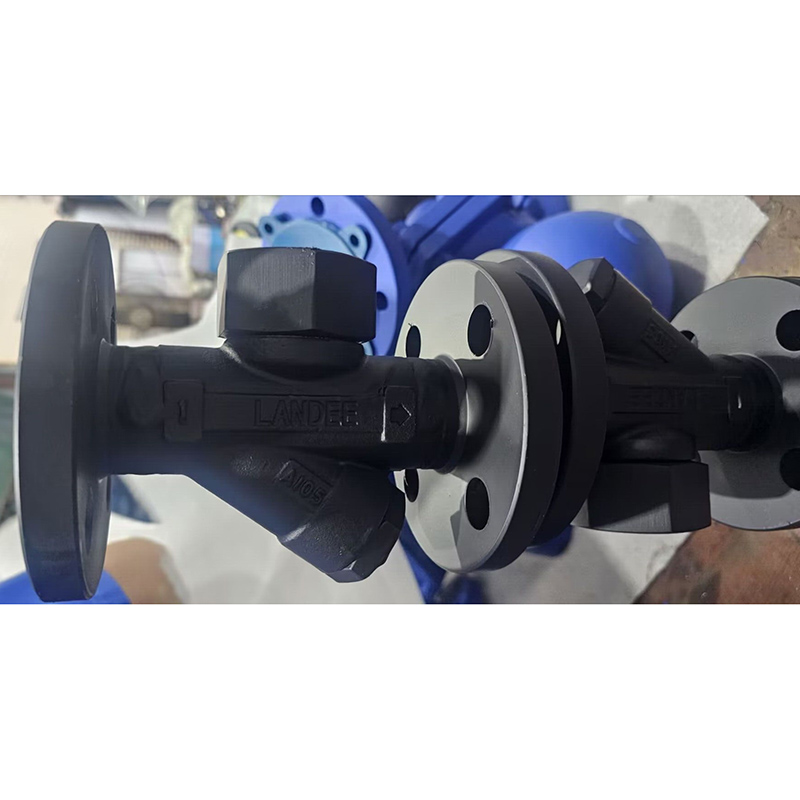

Product Name: ASTM A105 Thermodynamic Steam Trap
Type: Thermal Power / Thermodynamic Steam Trap
Design Standard: GB/T 22654
Size: JIS 25A (DN25)
Pressure Rating: JIS 10K
Body Material: ASTM A105
Disc Material: 20Cr13
Screen Material: SS 304
End Connection: Flanged
End Flange Dimension Standard: JIS B2220
Max. Working Pressure: 16 bar
Max. Working Temperature: 350°C
