Key Specifications / Features

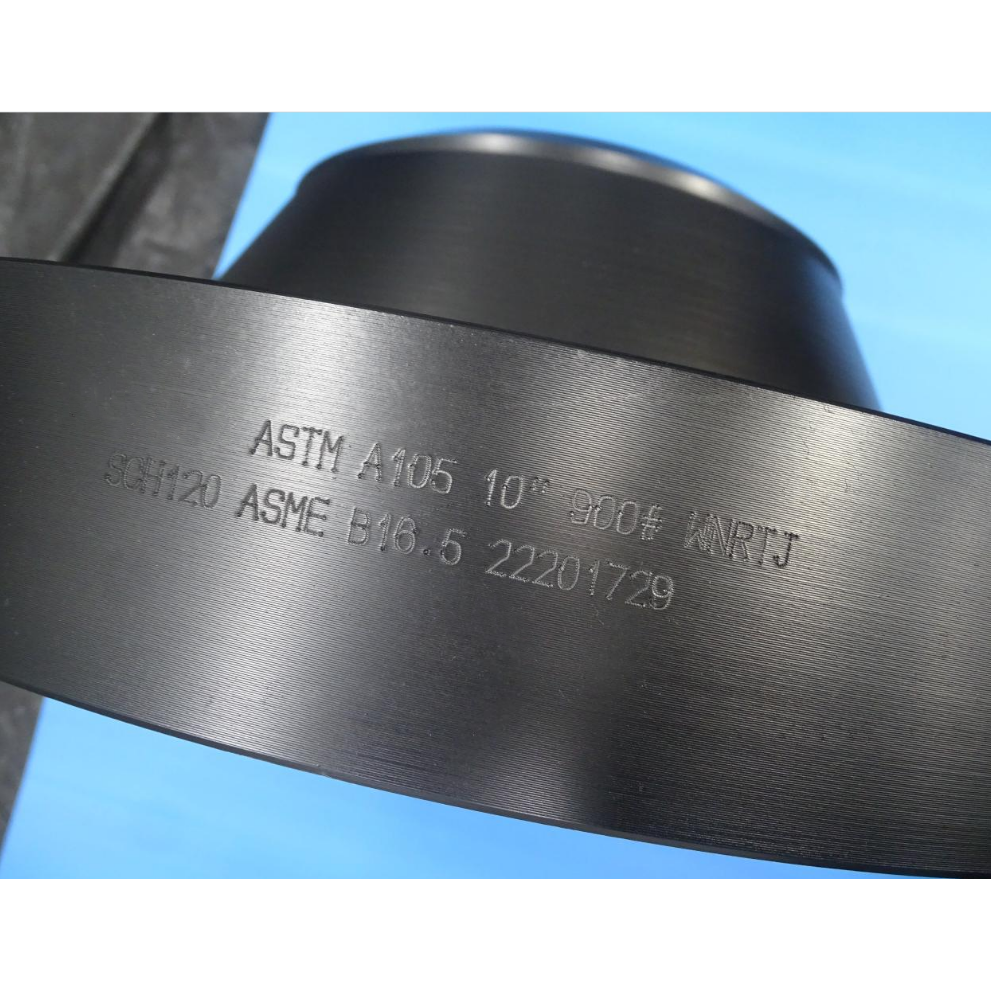

The ASTM A105 Weld Neck Flanges are made from carbon steel, providing superior strength and durability for high-pressure applications. Designed to meet ASME B16.5 standards, these 10-inch flanges feature a pressure class of 900 LB and an RTJ sealing face for secure, leak-proof connections. The anti-rust black coated surface ensures enhanced corrosion resistance, making them ideal for use in challenging environments.
- Model No.: LD-20250221-WNF-01
- Hits: 35
- Categories: Weld Neck Flanges
- Tags: ASME B16.5 Weld Neck Flange, ASTM A105 Weld Neck Flange, 10 Inch Weld Neck Flange
Detail Information
Product Item: ASTM A105 Weld Neck Flange
Standard: ASME B16.5
Material: ASTM A105
Size: 10 Inch
Pressure: Class 900 LB
Wall Thickness: SCH 120
Sealing Face: RTJ
Surface Treatment: Anti-Rust Black Coating
