Key Specifications / Features
This stainless steel ball valve features a reduced port design for cost-effective flow control in moderate-duty applications. It is manufactured from ASTM A182 F304 austenitic stainless steel. The valve is tested to API 598 standards for shell and seat integrity. The 2 by 1-1/2 inch size with Class 150 LB pressure rating suits low to medium pressure systems. A lever operator provides quick quarter-turn actuation. Raised face (RF) flanged ends ensure standardized bolting and gasket sealing compatibility.
- Model No.: LD-20260604-BAV-01
- Hits: 0
- Categories: Ball Valves
- Tags: ASTM A182 F304 Ball Valve, Reduced Port Ball Valve, Class 150 LB Ball Valve
Detail Information

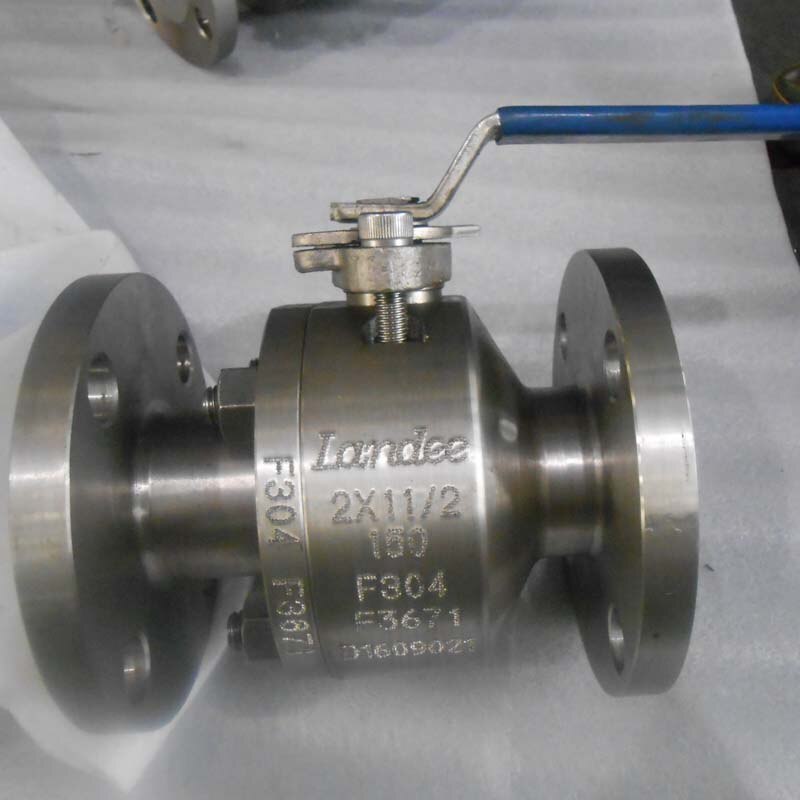

Product Name: Forged Stainless Steel Ball Valve
Type: Reduced Port Ball Valve, Fire-Safe
Size: 2 Inch * 1-1/2 Inch, DN50*DN40
Pressure Rating: Class 150 LB, PN20
End Connection: RF Flanged
Standard: API 598
Material:
Body: ASTM A182 F304
Ball: ASTM A182 F304
Seat: PTFE
Trim: ASTM A182 F304
Operator: Lever
Brand: Landee
