Key Specifications / Features

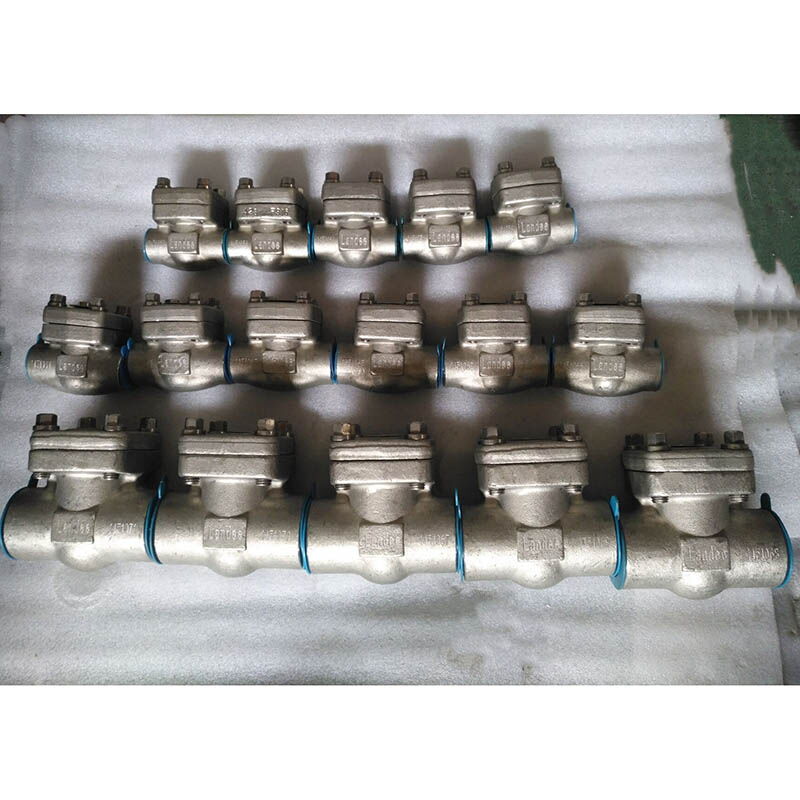

The ASTM A182 F316 check valve plant produces high-quality 40 mm swing check valves that meet API 602 standards. These valves feature a stainless steel body made from ASTM A182 F316 material, ensuring excellent corrosion resistance and durability. With a 1-1/2 inch diameter, they conform to DN40 and Class 150 LB standards, as well as a PN20 pressure rating. Equipped with NPT threaded ends for secure and reliable connections.
- Model No.: LD-20251220-CV-01
- Hits: 12
- Categories: Check Valves
- Tags: ASTM A182 F316 Check Valve, Swing Check Valve, 1-1/2 Inch Check Valve
Detail Information

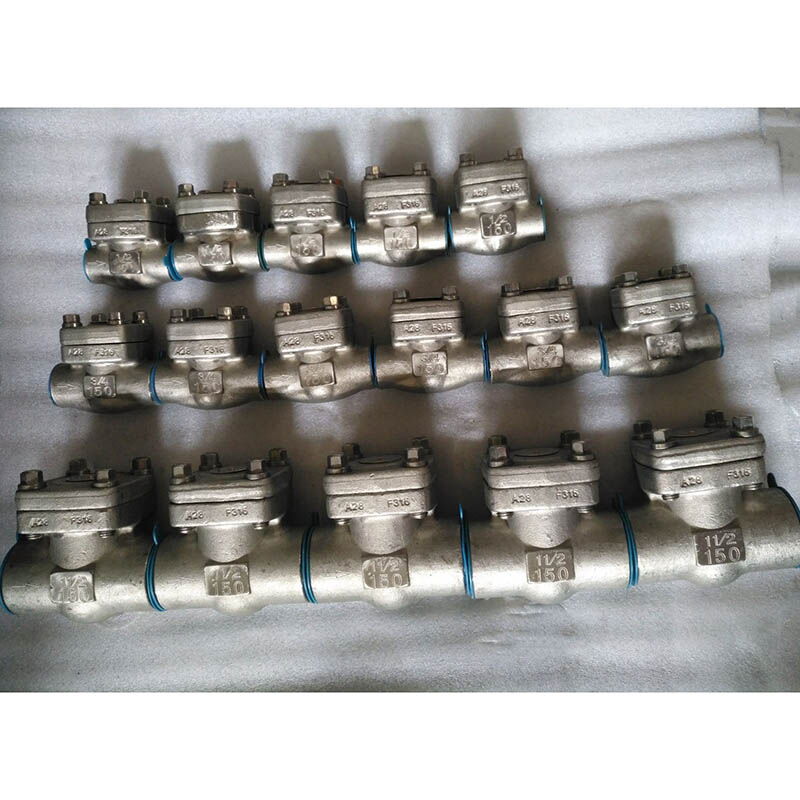

Product Name: ASTM A182 F316 Swing Check Valve, SCRD/NPT
Type: Swing Check Valve
Design Standard: API 602
Body Material: ASTM A182 F316
Disc Material: ASTM A182 F316
Seat Material: ASTM A182 F316
Size: DN40, 40 mm, 1-1/2 Inch
Pressure Class: Class 150 LB, PN20
End Connection: NPT per ASME B1.20.1
Pressure Test Standard: API 598
