Key Specifications / Features
This lubricated plug valve provides tight shutoff and smooth operation. It has an ASTM A216 WCB carbon steel body. The trim is UNS S31600 stainless steel for corrosion resistance. It meets API 598 testing standards. The valve size is 100 mm, or 4 inches. The pressure rating is Class 150 LB. It has RF flanged ends for reliable sealing.
- Model No.: LD-20260603-PV-01
- Hits: 3
- Categories: Plug Valves
- Tags: Lubricated Plug Valve, ASTM A216 WCB Plug Valve, 4 Inch Plug Valve
Detail Information

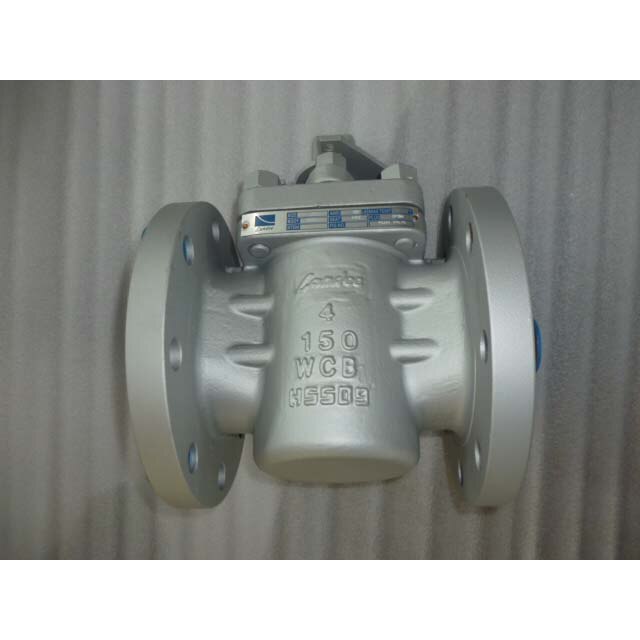

Product Name: ASTM A216 WCB Lubricated Plug Valve
Type: Lubricated Plug Valve
Size: 4 Inch, DN100, 100 mm
Pressure Rating: Class 150 LB, PN20
End Connection: RF Flanged
Material:
Body: ASTM A216 WCB, Carbon Steel
Seat: RPTFE
Trim: UNS S31600
Packing: Graphite
Standard: API 598
Brand: Landee
Features: Short Pattern, Self-Lubricating, Fire Safe
