Key Specifications / Features

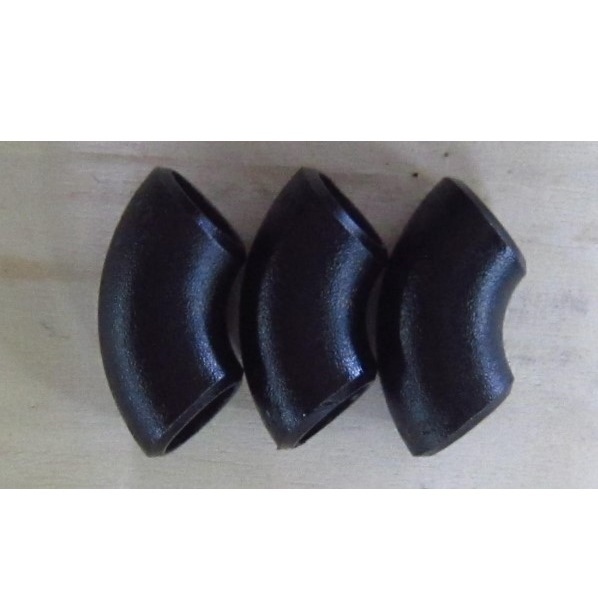

This 4-inch DN100, 90° long-radius seamless elbow follows ASME B16.9. Made of ASTM A234 Gr. WPB carbon steel with butt-weld ends and Sch 80 wall thickness, it smoothly redirects fluid flow by 90 degrees. It serves industrial piping systems and is commonly used in oil, gas, petrochemical, and power projects for stable pipeline direction changes.
- Model No.: LD-20261023-PE-01
- Hits: 1
- Categories: Elbows
- Tags: 90 Degree Elbow , Seamless Elbow , ASME B16.9 Elbow
Detail Information
Product: Long Radius 90 Degree Elbow
Size: 4 inch, DN100
Angle: 90 DEG
Radius Type: LR (Long Radius)
End Connection: BW (Butt Weld)
Standard: ASME B16.9
Material: ASTM A234 Gr WPB
Construction: SMLS (Seamless)
Wall Thickness: Sch 80
This is a 4-inch, 90-degree long-radius seamless elbow with butt-weld ends. It is produced to ASME B16.9 specification from ASTM A234 Gr. WPB carbon steel and rated Schedule 80.
It alters fluid flow direction at 90 degrees within industrial piping circuits, widely deployed for oil & gas, petrochemical, and power service piping.
