Key Specifications / Features
This manufacturer produces ASTM A351 CF3M lug butterfly valves. The valve meets API 609 standards. Both the body and disc are cast from ASTM A351 CF3M stainless steel. The size is 2 inches, DN50, or 50 mm. It is rated for Class 600 LB and PN100 pressure. Operation is by lever. This valve provides reliable flow control in corrosive and high-pressure industrial environments.
- Model No.: LD-20260523-BFV-01
- Hits: 0
- Categories: Butterfly Valves
- Tags: ASTM A351 CF3M Butterfly Valve, Lug Butterfly Valve, 2 Inch Butterfly Valve
Detail Information

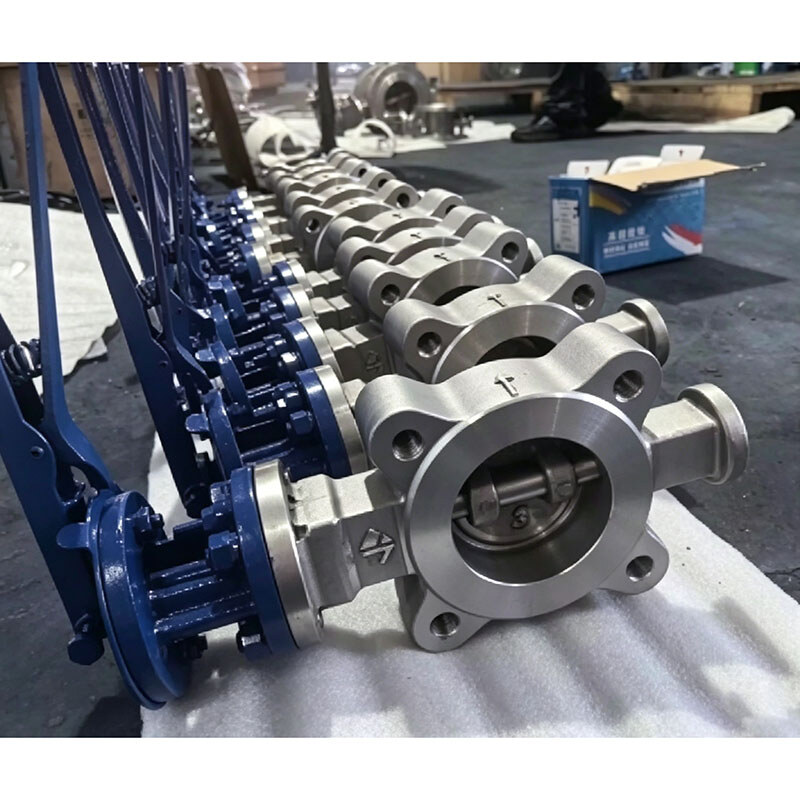

Product Name: ASTM A351 CF3M Lug Butterfly Valve
Standard: API 609
Size: 2 Inch, DN50, 50 mm
Pressure Rating: Class 600 LB, PN100
Body Material: ASTM A351 CF3M
Disc Material: ASTM A351 CF3M
Stem Material: ASTM A182 F316
Seat Material: EPDM
Connection Type: Lug Type
Operation Mode: Lever Operated
