Key Specifications / Features
This is a high-performance 20-inch lug-style butterfly valve designed for industrial piping systems. Manufactured to API 609 standards with an ASTM A351 CF8 (SS 304) body and disc for corrosion resistance, it features a Class 150 LB/DN500 PN20 pressure rating. The valve is equipped with a resilient EPDM seat for a tight seal and is actuated by a durable gear operator for precise control. Its lugged body design allows for easy installation and isolation.
- Model No.: LD-20260211-BFV-01
- Hits: 9
- Categories: Butterfly Valves
- Tags: 20 Inch Butterfly Valve, API 609 Butterfly Valve, ASTM A351 CF8 Butterfly Valve
Detail Information

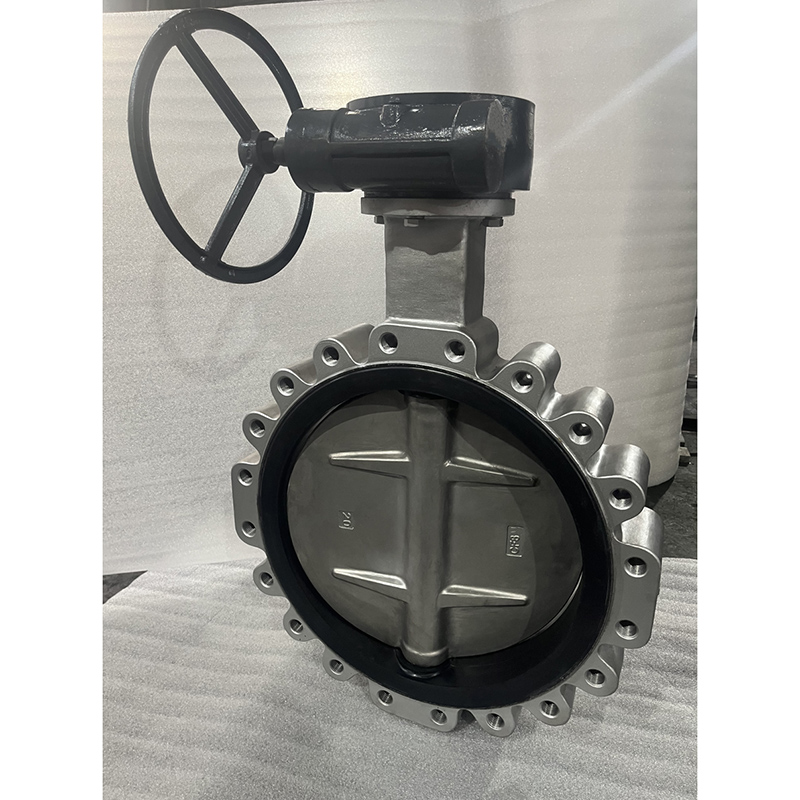

Product Name: ASTM A351 CF8 Lug Butterfly Valve
Standard: API 609
Size: 20 Inch, DN500
Pressure: Class 150 LB, PN20
Body Material: ASTM A351 CF8 (SS 304)
Disc Material: ASTM A351 CF8 (SS 304)
Stem Material: ASTM A182 F304
Seat Material: EPDM
Connection Type: Lug Type
Operating Mode: Gear Operated
