Key Specifications / Features

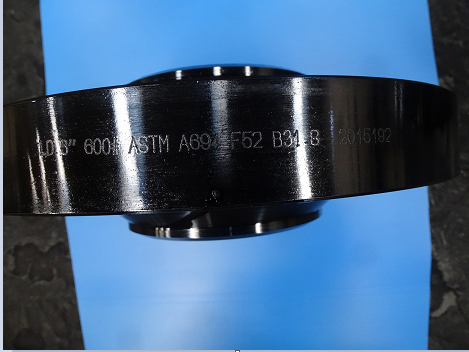

ASTM A694 F52 Anchor Flange Supplier: API 5L X52 Anchor Flanges, ASTM A694 F52, 6 Inch, DN150, Class 600 LB, PN100, WT 7.112 MM, OD 6.625 MM, Bevel End.
- Hits: 115
- Categories: Other Flanges
- Tags: 6 Inch Flange, Class 600 LB Flange, PN100 Flange
Detail Information
Anchor Flange, 600# Class Rating, Flange size 6", Pipe existing material API 5L X52
Outside dia. 6.625 mm, Wall Thickness 7.112 mm, Internal dia. 6.065, Hanger Flange material ASTM A694 F52, Material B31.8, Bevel end API bevel, 30 deg +5/0 deg
Product Item: Anchor Flange
Size: 6 Inch, DN150
Pressure: Class 600 LB, PN100
Material: ASTM A694 F52
Standard: API 5L X52
Outside Diameter: 6.625 mm
Internal Diameter: 6.065 mm
Wall Thickness: 7.112 mm
Outside dia. 6.625 mm, Wall Thickness 7.112 mm, Internal dia. 6.065, Hanger Flange material ASTM A694 F52, Material B31.8, Bevel end API bevel, 30 deg +5/0 deg
Product Item: Anchor Flange
Size: 6 Inch, DN150
Pressure: Class 600 LB, PN100
Material: ASTM A694 F52
Standard: API 5L X52
Outside Diameter: 6.625 mm
Internal Diameter: 6.065 mm
Wall Thickness: 7.112 mm
