Key Specifications / Features

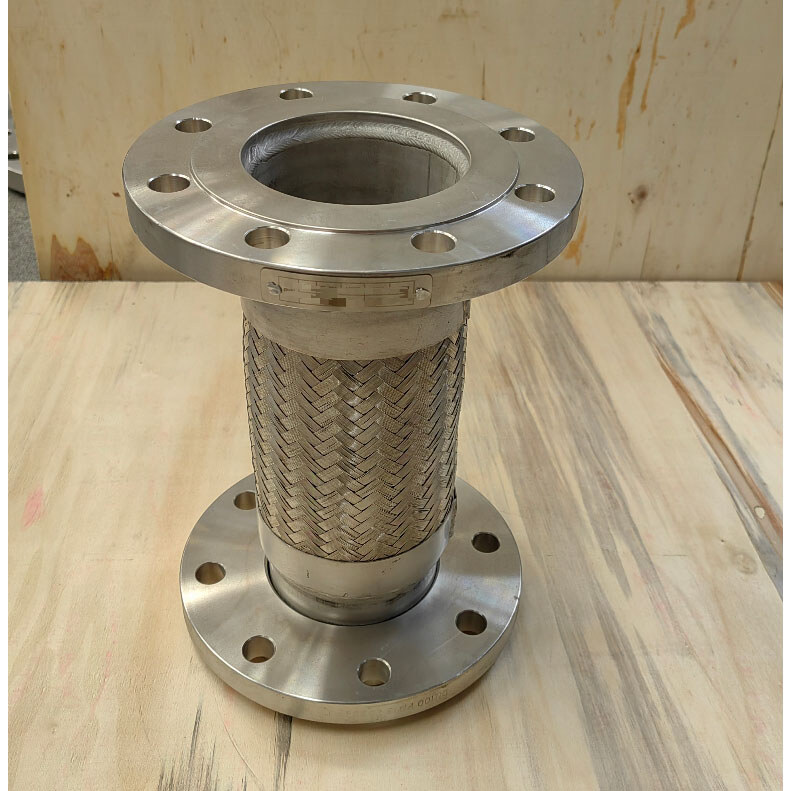

This flexible expansion joint is produced by a braided flexible hose factory in China. It features SS 316L bellows for excellent corrosion resistance. The assembly includes ribbon braid and flanges for secure end connections. The nominal diameter is DN250. It is rated for 10 bar working pressure. The overall length is 400 mm OAL. This design absorbs vibration, thermal expansion, and misalignment in piping systems.
- Model No.: LD-20260527-PJ-01
- Hits: 0
- Categories: Joints
- Tags: Flexible Expansion Joint, SS 316L Expansion Joint, Braided Flexible Hose
Detail Information
Product Name: Braided Flexible Hose
Type: Braided Flexible Expansion Joint
Bellows Material: SS 316L
Ribbon Braid Material: SS 316L
Size: DN250
Design Pressure: 10 Bar, PN10
Overall Length: 400 mm OAL
Lateral Movement: 20 mm
End Connections:
End 1: Fixed ANSI 150 LB Flange, SS 316L
End 2: Loose ANSI 150 LB Flange, SS 316L
Design Temperature: 150°C
