BS 750 Pillar Fire Hydrant, Ductile Iron, Two-Way, 1.6 MPa

Key Specifications / Features

The BS 750 Pillar Fire Hydrant is a robust outdoor fire hydrant designed for reliable fire-fighting applications. It features a durable ductile iron body and an aluminum buckle for enhanced durability and corrosion resistance. Equipped with a 1.6 MPa pressure rating and a 4-inch bottom flange, this hydrant ensures stable water flow and secure installation. The two-way design includes two landing valves, providing flexibility and efficiency in water distribution.

Model No.: LD-20260110-FFE-01
Hits: 64
Categories: Fire Fighting Equipment
Tags: Ductile Iron Fire Hydrant , Pillar Fire Hydrant , BS 750 Fire Hydrant

Request a quote

Detail Information

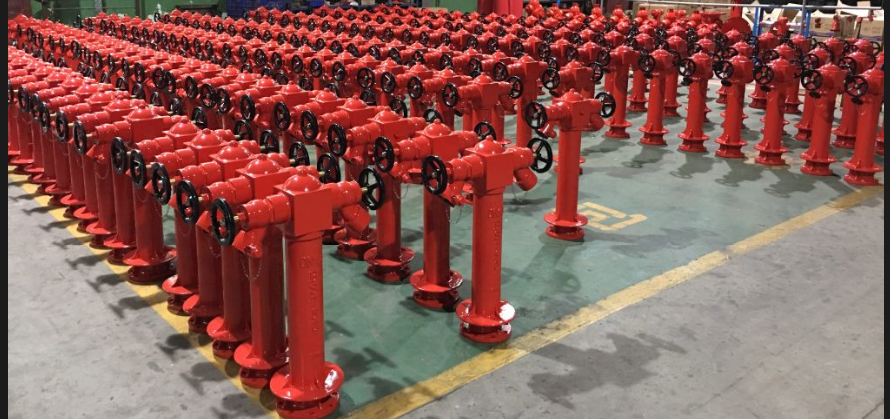

Product Name: Outdoor Fire Hydrant, Two-Way Pillar Type
Standard: BS 750
Body Material: Ductile Iron (DI)
Buckle Material: Aluminum
Bottom Flange: 4 Inches
Outlet: 2 * BS 336 Landing Valve
Rated Working Pressure: 1.6 MPa / 16 bar / 235 psi
Application: Outdoor fire hydrants are key firefighting facilities installed on urban water supply networks. They provide a reliable and immediate water source for firefighting operations at fire scenes.
