Key Specifications / Features

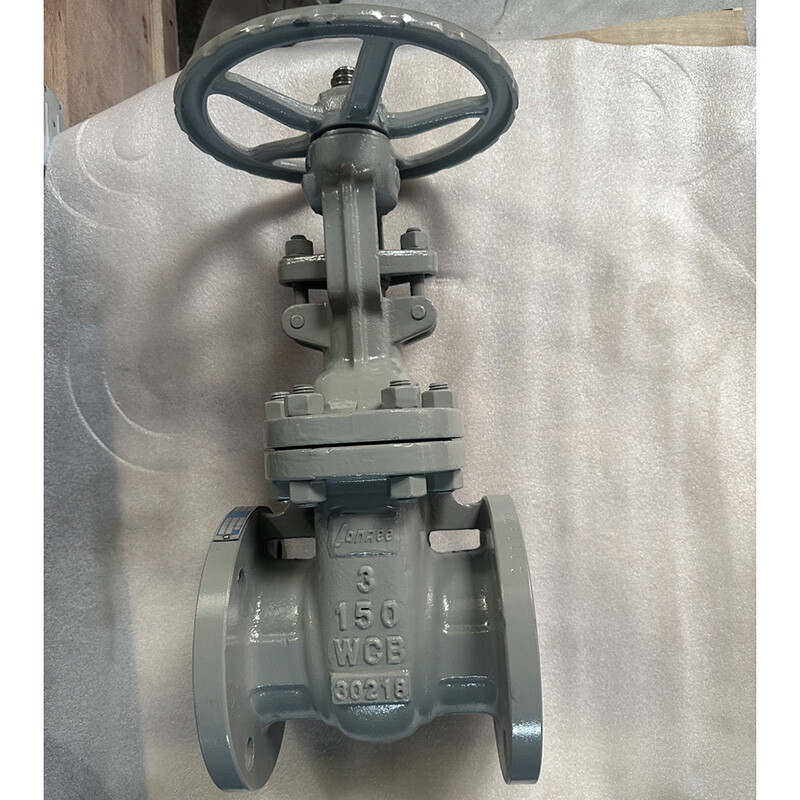

The 80 mm Carbon Steel Gate Valve is a robust, industrial-grade isolation valve engineered for reliable on/off flow control. Built to ASTM A216 WCB carbon steel body standards with a hardened ASTM A105 + STL (Stellite) disc, it delivers exceptional durability and wear resistance under high-pressure conditions. Designed for 3-inch (DN80) pipelines with Class 150 LB pressure rating, this valve features flanged end connections for secure, standardized installation and handwheel operation for simple, manual control.
- Model No.: LD-20260420-GTV-01
- Hits: 0
- Categories: Gate Valves
- Tags: ASTM A216 WCB Gate Valve, Carbon Steel Gate Valve, 3 Inch Gate Valve
Detail Information
Product Name: Carbon Steel Gate Valves
Type: Gate Valve
Size: 3 Inch, DN80, 80 mm
Class Rating: Class 150 LB, PN20
Body Material: ASTM A216 WCB
Disc Material: ASTM A105 + STL
Seat Material: ASTM A105 + STL
Stem Material: ASTM A182 F6
Gasket Material: Graphite + SS 316
Test Standard: API 598
End Connection: Flanged Ends
Operation: Handwheel Operated
Packaging: Wooden Cases
Type: Gate Valve
Size: 3 Inch, DN80, 80 mm
Class Rating: Class 150 LB, PN20
Body Material: ASTM A216 WCB
Disc Material: ASTM A105 + STL
Seat Material: ASTM A105 + STL
Stem Material: ASTM A182 F6
Gasket Material: Graphite + SS 316
Test Standard: API 598
End Connection: Flanged Ends
Operation: Handwheel Operated
Packaging: Wooden Cases
