Key Specifications / Features

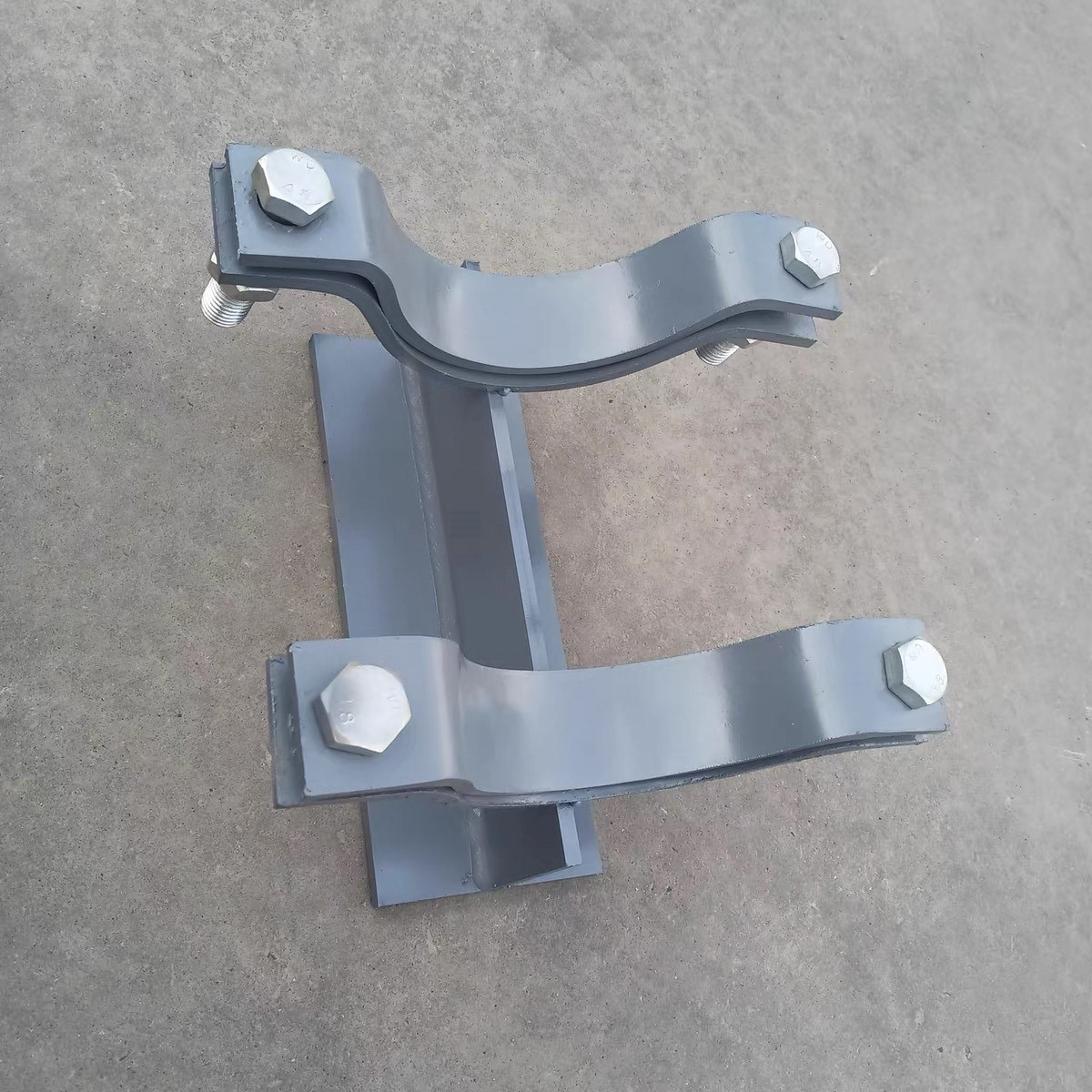

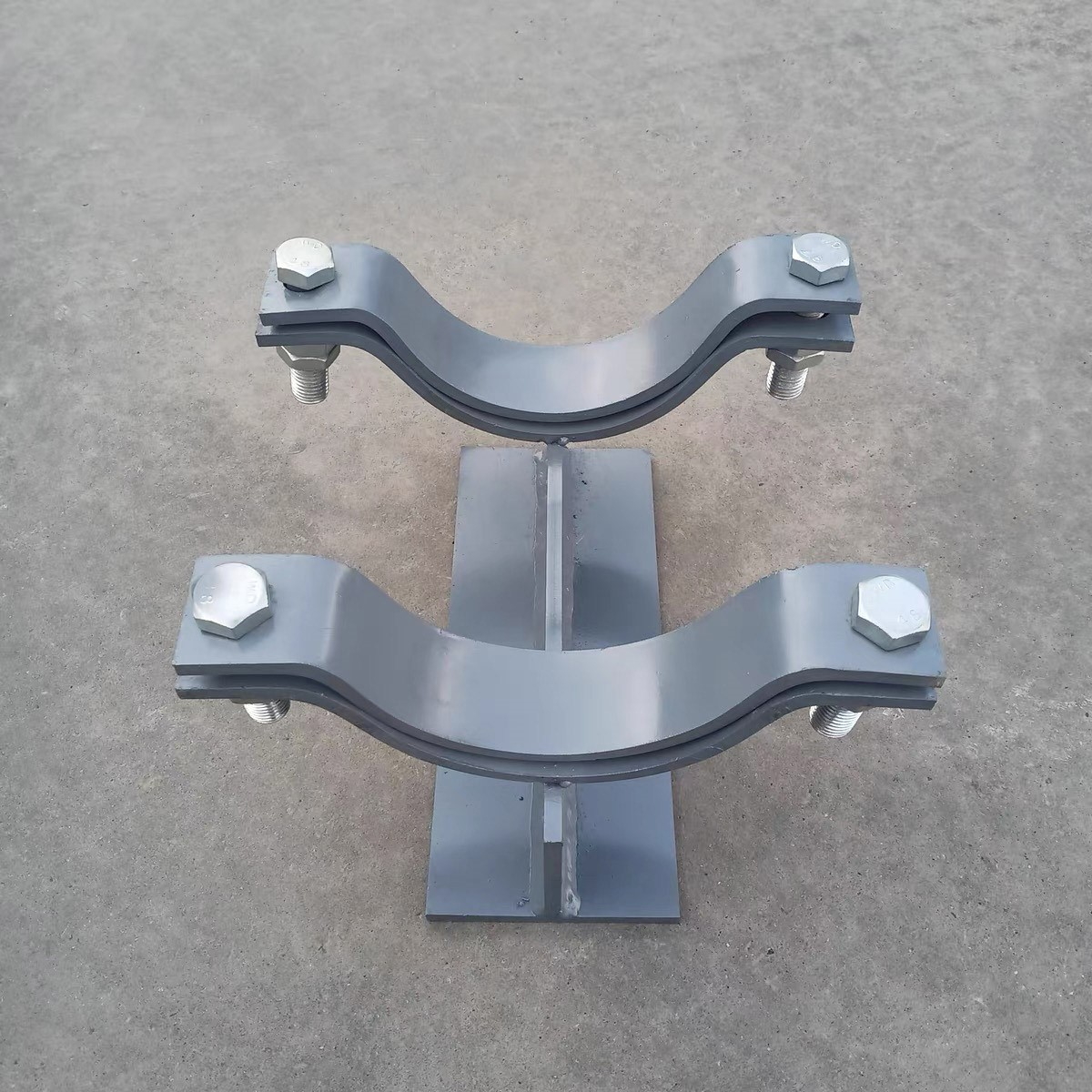

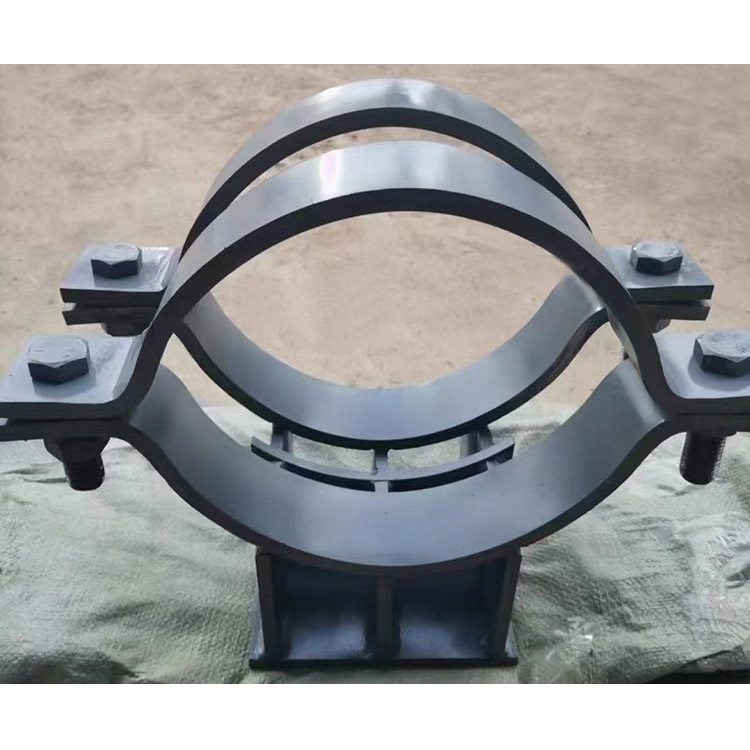

This carbon steel pipe guide is engineered for 4-inch industrial pipe. It serves as a pipe restraint fitting to limit unwanted lateral pipe shift. Meanwhile, it permits free axial displacement to accommodate pipe thermal expansion during temperature changes. Widely adopted in process piping, power plants, and oil & gas pipeline layouts, it stabilizes the piping system, reduces extra stress, and protects connected equipment against deformation damage from heat-induced length variation.
- Model No.: LD-20261026-PG-01
- Hits: 1
- Categories: Other Tools
- Tags: DN100 Pipe Guide , 4 Inch Pipe Guide , Pipe Guide
Detail Information
Product Name: Pipe Guide
Material: Carbon Steel
Applicable Pipe Size: 4 inch, DN100
Carbon steel pipe guide designed for 4-inch pipe applications.
Used in industrial piping systems to restrict lateral pipe movement while allowing axial movement due to thermal expansion.
Pipe Guide: A pipe support component that guides piping and controls displacement
Carbon Steel: Common structural steel material for pipe support
Lateral movement: Sideways horizontal displacement of the pipe
Axial movement: Lengthwise movement along the pipe centerline
Thermal expansion: Change in pipe length caused by temperature variation
