Key Specifications / Features
This carbon steel pipe spool combines ASTM A106 Grade B seamless pipe with ASTM A105 forged flanges for robust, high-pressure service. The 10-inch assembly features a compact 457mm overall length, pre-fabricated for rapid field installation. Anti-rust coating protects against corrosion during storage and transit, making it ideal for oil & gas, petrochemical, and power plant piping systems requiring reliable, ready-to-install components.
- Model No.: LD-20260403-OPF-01
- Hits: 0
- Categories: Other Fittings
- Tags: ASTM A106 Grade B Pipe Spool, 10 Inch Pipe Spool, Flanged Pipe Spool
Detail Information

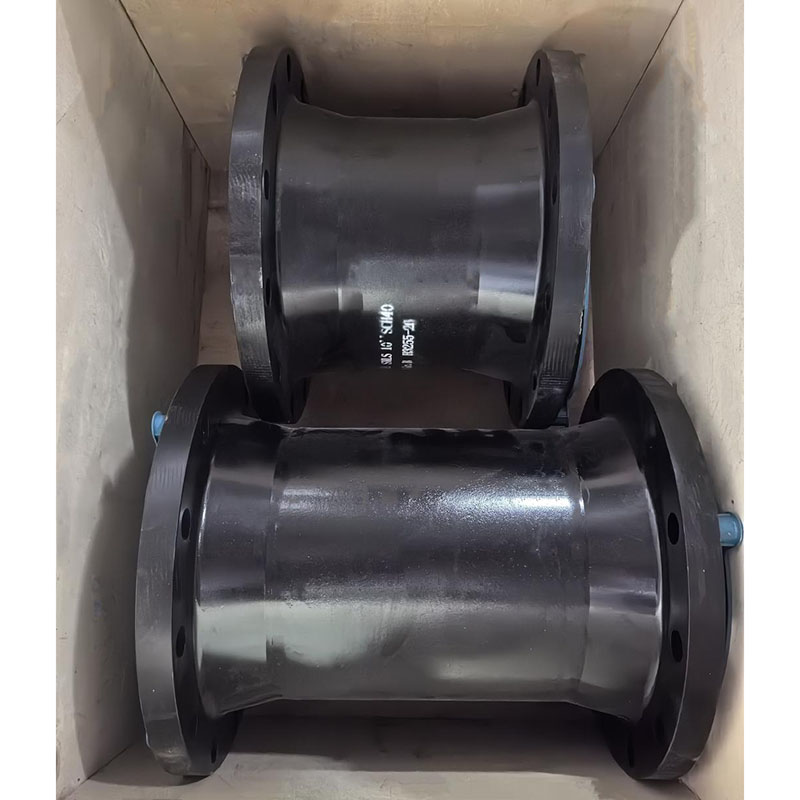

Product Name: Carbon Steel Pipe Spool
Pipe Material: ASTM A106 Grade B
Pipe Size: 10 Inch, SCH 40
Flange Type: Weld Neck Flanges
Flange Material: ASTM A105
Flange Size & Rating: 10 Inch, Class 150 LB, RF
Overall Length: 457 mm
End Connection: Flanged (WN Flanges at Both Ends)
Surface Treatment: Black Anti-Rust Coating
Testing: RT Test performed on all welding joints
