Key Specifications / Features
The China Code 61 Hydraulic SAE Flanges Plant offers high-quality Weld-On Double Flanges designed for robust hydraulic systems. These flanges are constructed from P355GH steel, ensuring durability and strength. With a 3-inch diameter and a wall thickness of SCH 160, they can withstand pressures up to 3000 PSI. Each flange set includes O-ring and bolting components for secure and leak-free connections. They are ideal for applications requiring high pressure and reliability, such as heavy industrial hydraulic systems.
- Model No.: LD-20251118-OF-01
- Hits: 14
- Categories: Other Flanges
- Tags: Code 61 SAE Flange, Hydraulic SAE Flange, P355GH SAE Flange
Detail Information

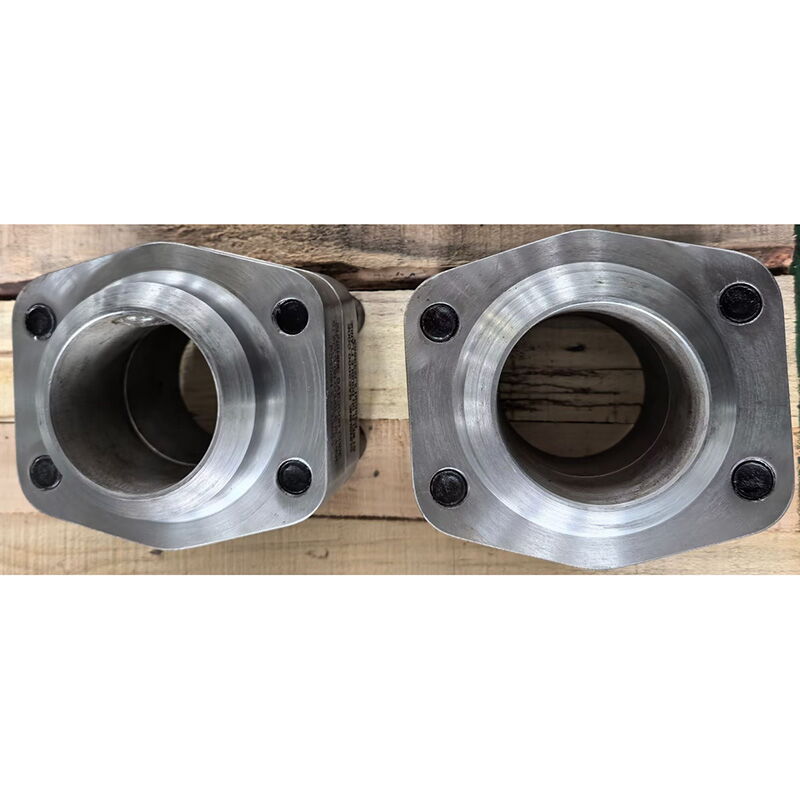

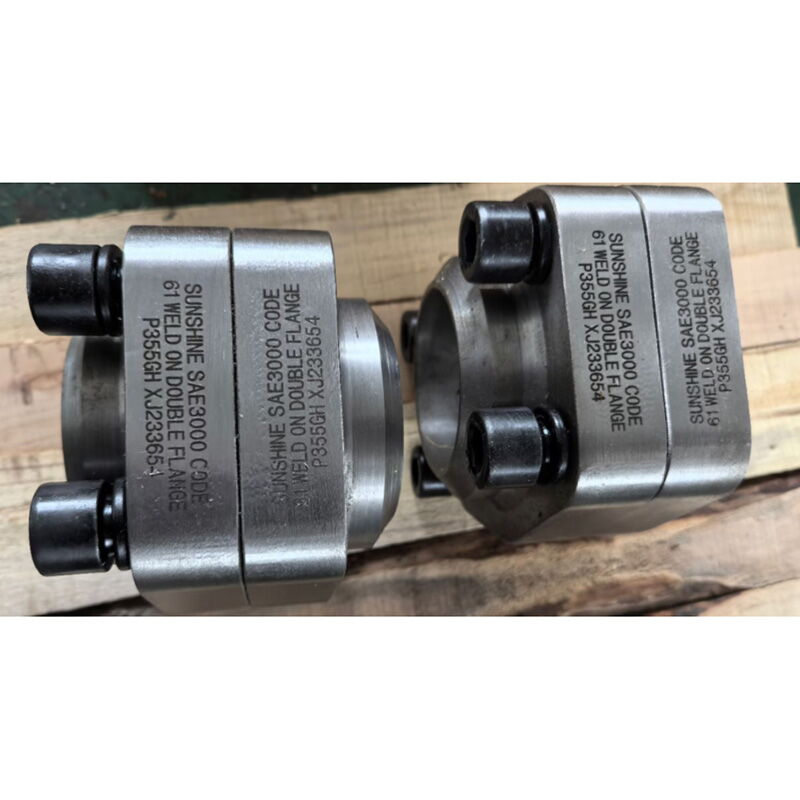

Product Item: Code 61 Hydraulic SAE Flange, C/W O-Ring and Bolting Components
Body Type: Forged Quality
Design: Weld-On Double Flange
Code: Code 61
Material: P355GH
Size: 3 Inch
Pressure: 3000 PSI
Schedule: SCH 160
Product Range
Code: Code 61 SAE Hydraulic Flange (3000 PSI) , Code 62 SAE Hydraulic Flange (6000 PSI)
Size Range: 3/8-5 Inch (DN10-DN125)
Working Pressure: Up to 210 BAR (3000 PSI), 420 BAR (6000 PSI), 700 BAR (10,000 PSI), Customized options available
Connection: Butt Weld, Socket Weld, Threaded (BSPP, NPT)
Flange Accessories: O-Ring, Bolt, Nut, Washer
