Key Specifications / Features

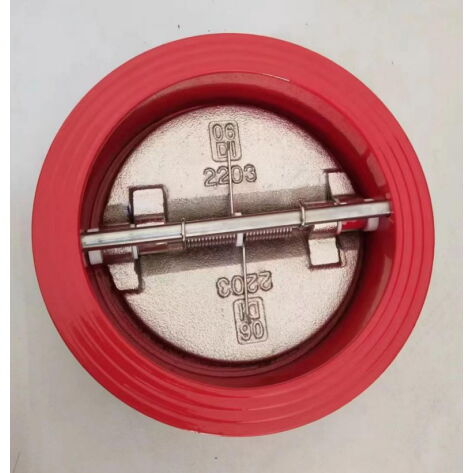

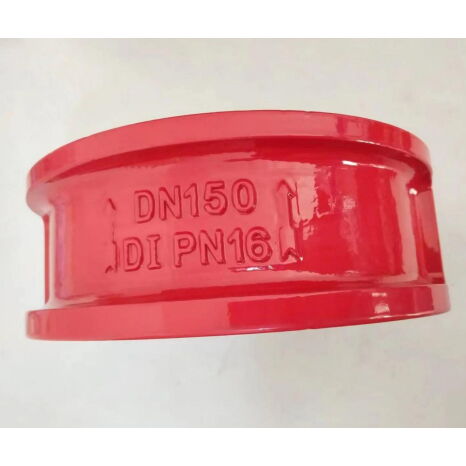

The Double-Door Wafer Check Valve Plant produces a versatile 150 mm (DN150, 6 Inch) Check Valve designed for efficient fluid control. This valve features a ductile iron body and disc, ensuring durability and strength. The EPDM seat provides excellent sealing properties, while the SS 304 spring ensures reliable operation. With pressure ratings of PN6, PN10, and PN16, and a Class 150 LB classification, it meets various industrial standards.
- Model No.: LD-20260114-CV-01
- Hits: 11
- Categories: Check Valves
- Tags: Ductile Iron Check Valve, Wafer Check Valve, Double Door Check Valve
Detail Information

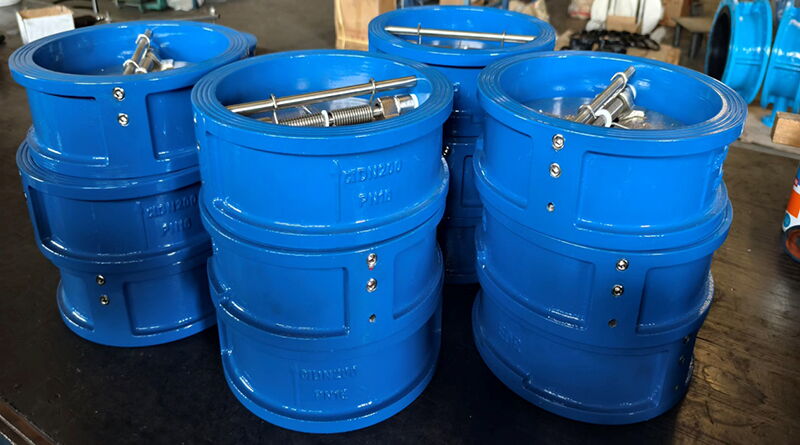

Product Name: Double-Door Resilient Seat Wafer Check Valve
Type: Double-Door Resilient Seat Wafer Check Valve
Size: DN150, 150 mm, 6 Inch
End Connection: DIN PN6 / PN10 / PN16, ANSI B16.5 Class 150 LB
Body Material: Ductile Iron
Disc Material: DI
Shaft Material: SS 420
Seat Material: EPDM
Spring Material: SS 304
