Key Specifications / Features

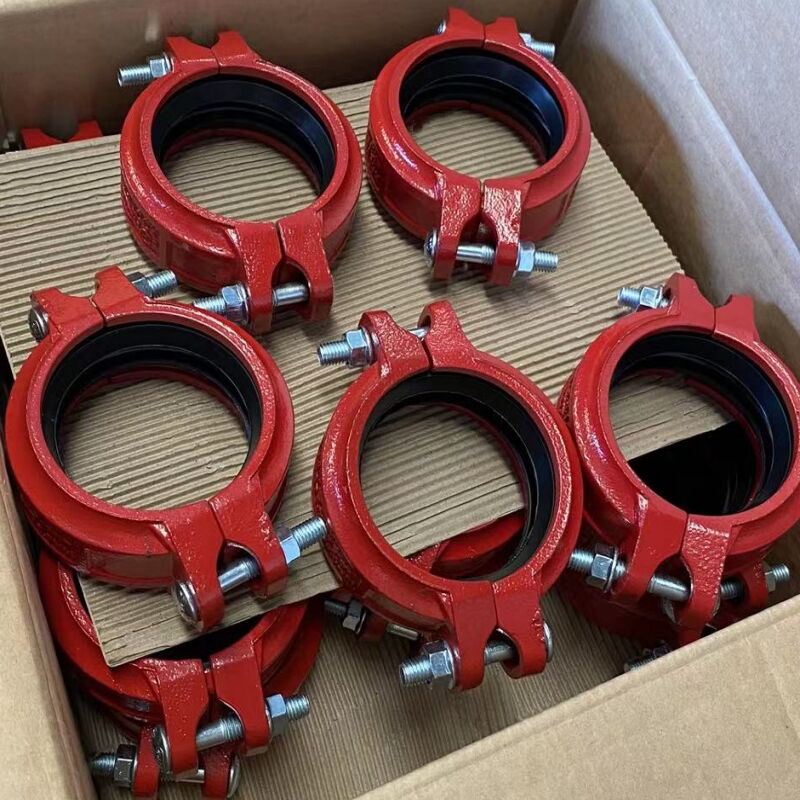

The Grooved Coupling Plant offers a Rigid Coupling with UL and FM certifications, ensuring high safety and performance standards. Constructed from ductile iron (ASTM A536 65-45-12), this coupling is designed for DN65 applications. It features a RAL3000 epoxy surface coating for enhanced durability and corrosion resistance, along with an EPDM gasket for reliable sealing and performance in various piping systems.
- Model No.: LD-20240807-PCP-01
- Hits: 214
- Categories: Couplings
- Tags: Ductile Iron Pipe Coupling, ASTM A536 Grade 65-45-12 Pipe Coupling, Grooved Pipe Coupling
Detail Information
Product Item: Grooved Coupling, Rigid Coupling, UL & FM
Certification: UL & FM
Standard: as per Customer's Requirements
Material: Ductile Iron ASTM A536 Grade 65-45-12
Size: DN65, 2.5 Inch (OD 73 mm)
Surface Treatment: Epoxy - RAL3000
Gasket: EPDM
Bolts & Nuts: Galvanized Class 8.8
Certification: UL & FM
Standard: as per Customer's Requirements
Material: Ductile Iron ASTM A536 Grade 65-45-12
Size: DN65, 2.5 Inch (OD 73 mm)
Surface Treatment: Epoxy - RAL3000
Gasket: EPDM
Bolts & Nuts: Galvanized Class 8.8
