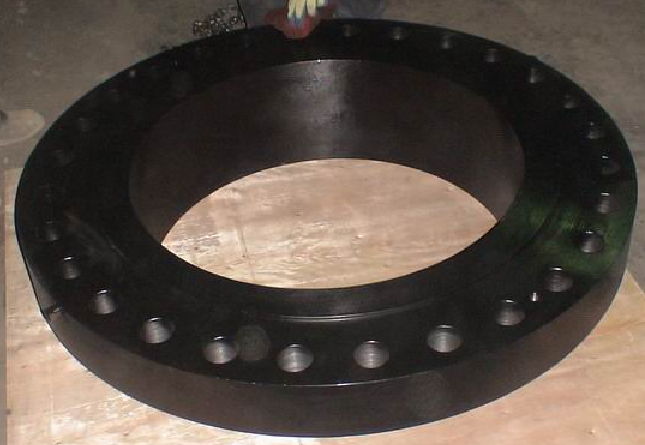

Flat Face Weld Neck Flange, 96 Inch, 125 LB

Flat Face Weld Neck Flange, 96 Inch, 125 LB

Key Specifications / Features

96 Inch Flat Face Weld Neck Flange Factory: FF WN Flanges, 96 Inch, Class 125 LB, ASME B16.1, ANSI B16.1, 2402.2 mm Bore.
Request a quote

Detail Information

ASME B16.1, ANSI B16.1 CLASS 125 Weld Neck Flange Flat Face 96"

Type: Weld Neck Flange
Nominal Size: 96 Inch
Pressure: Class 125 LB
Standard: ASME B16.1, ANSI B16.1
Bore: 2402,2 mm
Feature: Weld neck Flat Face

FF WN Flanges

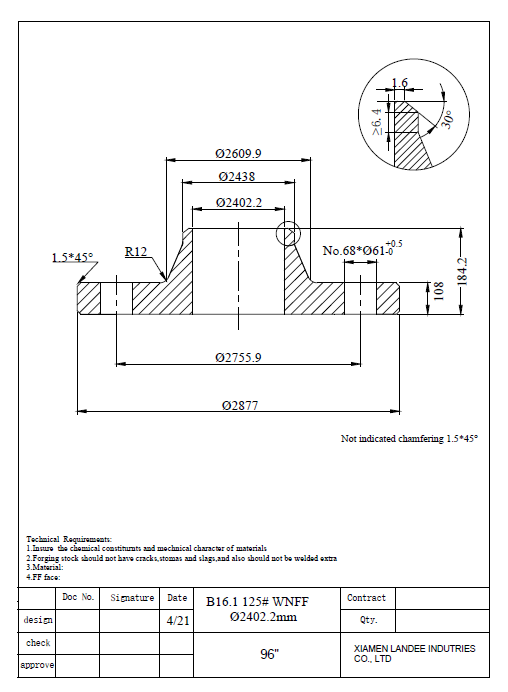

Technical Drawing
