Fully Welded Ball Valve, API 6D, API 608, ISO 17292, 2-60 IN

Fully Welded Ball Valve Supplier: Fully Welded Ball Valves, 2-60 Inch, 150-2500 LB, API 6D, API 608, ISO 17292, RF, RTJ, BW, Carbon steel, Stainless steel.

Tags:

• Fully Welded Ball Valve
• API 6D Ball Valve
• API 608 Ball Valve
• ISO 17292 Ball Valve
• 2 Inch Ball Valve
• 60 Inch Ball Valve
• Class 150 LB Ball Valve
• Class 2500 LB Ball Valve
• Carbon Steel Ball Valve
• Stainless Steel Ball Valve

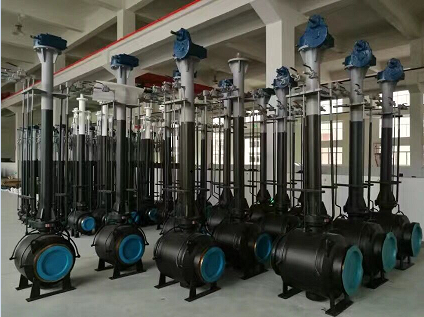

Fully Welded Ball Valve

Main features: The valve body joint is fully welded which eliminates external leakage through the body joint. The valves are especially suitable for long-distance buried pipelines with rigorous service conditions, such as city gas, city heating, petrochemical plants and etc.

Design standard: API 6D, API 608, ISO 17292

Product range

1. Pressure range: CLASS 150-2500 LB
2. Nominal diameter: NPS 2-60 Inch
3. Body material: Carbon steel, Stainless steel, duplex stainless steel, Alloy steel, Nickel alloy
4. End connection: RF, RTJ, BW
5. Mode of operation: Lever, Gearbox, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device

Product features

1. Flow resistance is small
2. Piston seat, fire safe, antistatic design
3. No limitation on the flow direction
4. When the valve is in a fully open position, seat surfaces are outside the flow stream that is always in complete contact with a gate that can protect seat surfaces, and is suitable for pigging pipeline
5. Spring-loaded packing can be chosen
6. Low emission packing can be chosen according to ISO 15848 requirement
7. Stem extended design can be chosen
8. Metal-to-metal seat design can be chosen
9. DBB, DIB-1, and DIB-2 structures can be chosen
10. The ball is fixed with a supporting plate and a fixed shaft
11. Single welding joint or double welding joint design can be chosen
