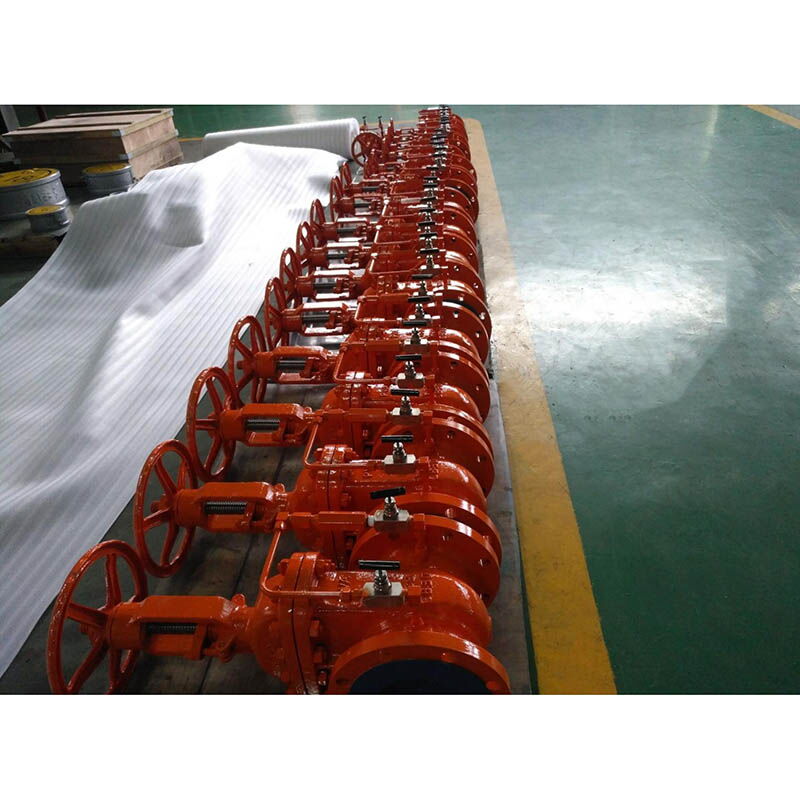

Gate Valve with Thermal Bypass Line, API 600, A216 WCB, DN150

Key Specifications / Features

The Flexible Wedge Gate Valve Supplier offers a high-quality gate valve designed to meet API 600 standards. This valve features a thermal bypass line for enhanced performance and an ASTM A216 WCB body, ensuring durability and reliability. With a DN150 (6-inch) diameter, it meets Class 150 LB and PN20 pressure ratings. The valve is equipped with a rising stem, bolted bonnet (BB), and outside screw and yoke (OS&Y) mechanism for easy operation and maintenance.

Model No.: LD-20251220-GTV-01
Hits: 0
Categories: Gate Valves
Tags: ASTM A216 WCB Gate Valve, API 600 Gate Valve, Flexible Wedge Gate Valve

Request a quote

Detail Information

Product Name: Gate Valve with Thermal Relief Upstream, Thermal Bypass Line
Type: Gate Valve
Body Design: Bolted Bonnet & Gland, OS&Y, Rising Stem
Trim Design: Flexible Wedge
Design Standard: API 600
Body Material: ASTM A216 WCB
Trim Material: API 8#
Size: DN150, 150 mm, 6 Inch
Pressure Class: Class 150 LB, PN20
End Connection: RF Flanged
Operation: Handwheel
External Coating: Red (Fire Fighting Color)
Special Feature: with Thermal Bypass Line
3/8 Inch OD Tubing, SS 316
2 × 3/8 Inch SS 316 Needle Valves
1 × 3/4 Inch Check Valve (Cracking Pressure: 100 kPa)
