HDPE Pipe, PE100, PE100-RC, DN20-DN2000, PN6-PN20, EN12201

Key Specifications / Features

HDPE Pipe, also known as High Density Polyethylene Pressure Pipe, is continuously extruded from PE100 resin and built for buried pipeline systems. It offers full corrosion resistance, resisting rust, soil chemicals, acids, and alkalis without the electrochemical corrosion found in steel pipe. Its smooth inner surface delivers low friction, greater flow capacity, less pumping power, and prevents scaling. Flexible and tough, it withstands impacts, adapts to ground settlement and seismic shifts; small sizes can be coiled. Butt fusion or electrofusion creates seamless, leak-proof homogeneous joints. Lighter than steel and ductile iron pipe, it cuts transport and installation expenses. With a 50-year design lifespan, carbon black provides UV stability. Non-toxic and recyclable, this PE100 and PE100-RC pipe meets ISO 4427 and EN12201. DN20 to DN2000, multiple SDR and PN ratings suit drinking water, sewage, irrigation, industrial chemical, and slurry transport.

Model No.: LD-20260928-PP-01
Hits: 0
Categories: Plastic Pipe
Tags: PE100 Pipe , PE100-RC Plastic Pipe , EN 12201 Plastic Pipe

Request a quote

Detail Information

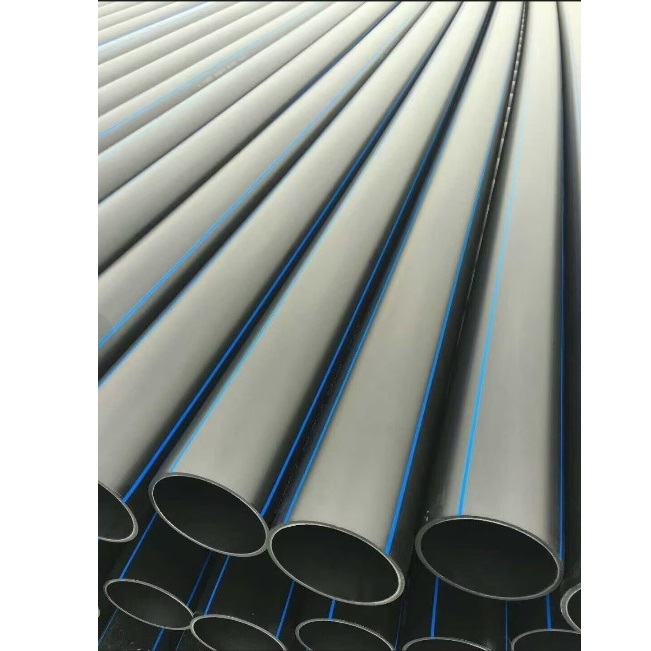

HDPE Pipe – High-Density Polyethylene Pressure Pipe. HDPE pipe is manufactured by continuous extrusion of PE100 resin, specially designed for buried pipeline systems

Key Features

1. Fully corrosion-resistant: No rust, immune to soil chemicals, acids & alkalis, no electrochemical corrosion like steel pipe.
2. Smooth internal surface: Low friction coefficient, higher flow capacity, less pumping energy consumption, no scaling.
3. Flexible & tough: Good impact resistance, adapts to ground settlement and seismic movement. Small diameters can be supplied in coils.
4. Fusion-welded joints: Butt fusion or electrofusion. Homogeneous welded joints are leak-free and integrate with the pipe.
5. Lightweight: Much lighter than steel / ductile iron pipe, easy transport and on-site handling, lower installation cost.
6. Long design life: Minimum 50 years under proper operating conditions; UV-stabilized with carbon black additive.
7. Non-toxic, food-grade for drinking water application; recyclable and eco-friendly.

Specifications

Raw material: PE100 / PE100-RC
Standards: ISO 4427, EN12201
Dimension: DN20 - DN2000
SDR: SDR41, SDR33, SDR26, SDR21, SDR17, SDR13.6, SDR11, SDR9 etc.
Pressure rating: PN6, PN8, PN10, PN12.5, PN16, PN20 bar
