Key Specifications / Features
High-pressure carbon steel anchor flanges are manufactured to ASTM A694 F65 specifications. The standard offering is 6 inches (DN150) rated for Class 1500 LB (PN250) service with beveled ends for welded installation. The full production range covers sizes from 1/2 inch to 60 inches to accommodate diverse piping requirements. Custom dimensions, pressure ratings, and material grades are available upon request to meet specific project standards.
- Model No.: LD-20260423-OF-01
- Hits: 0
- Categories: Other Flanges
- Tags: High Pressure Anchor Flange, 6 Inch Anchor Flange, ASTM A694 F65 Anchor Flange
Detail Information

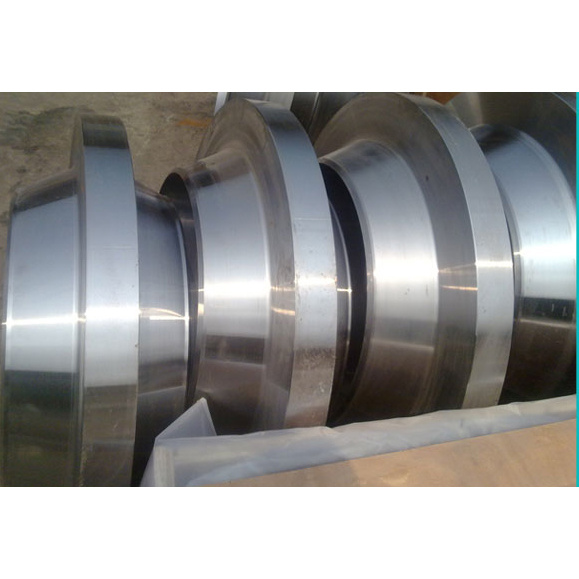

Product Name: High Pressure Anchor Flange
Type: Anchor Flanges
Material: ASTM A694 F65
Size: 6 Inch
Pressure Rating: Class 1500 LB
Ends: Beveled Ends
Product Range
Standards: API, ANSI, BS, JIS, UNI, MSS SP; As per Client Drawings
Materials:
Stainless Steel, Alloy Steel, Carbon Steel
ASTM A105
ASTM A350 LF1, LF2 Class 1/Class 2, LF3 CL1/CL2
ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70
ASTM A182 F304/304L, F316/316L, F316H, F310, F321
ASTM A182 F11, F22
Size Range: 1/2-60 Inches, DN15-DN1600 (15-1600 mm)
Pressure Range: ANSI Class 150 LB, 300 LB, 600 LB, 900 LB, 1500 LB, 2500 LB
Application: Oil & Gas / Offshore / Water Systems / Shipbuilding / Power Plants / Pipeline Projects
