Key Specifications / Features

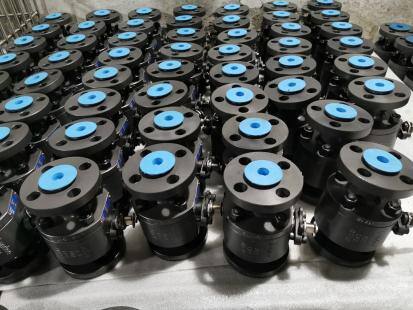

This supplier provides high-pressure forged ball valves in 50 mm size. The valves comply with API 6D standards. The body is made from ASTM A105 forged steel. The trim uses SS 316 stainless steel. Sealing is handled by PTFE material. The valve measures 2 inches, or DN50. It is rated for Class 600 LB pressure. The ends are RTJ flanged for high-pressure pipeline connections. This design ensures tight shutoff in severe industrial applications.
- Model No.: LD-20260523-BAV-01
- Hits: 0
- Categories: Ball Valves
- Tags: High Pressure Ball Valve, 2 Inch Ball Valve, ASTM A105 Ball Valve
Detail Information

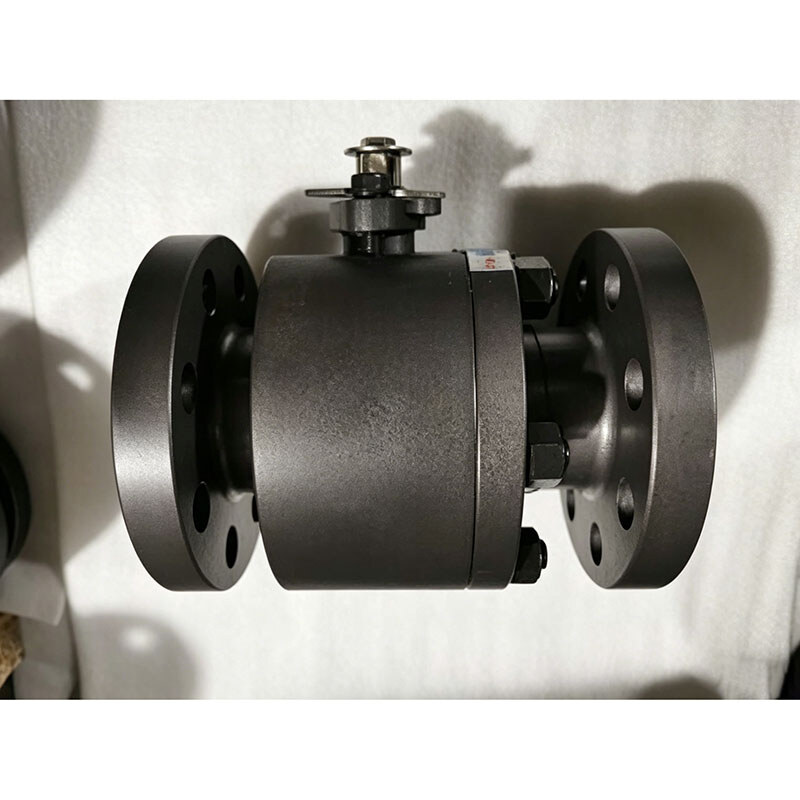

Product Name: High-Pressure Forged Ball Valve
Standard: API 6D
Body Material: ASTM A105
Trim Material: SS 316
Seal Material: PTFE
Size: 2 Inch, DN50, 50 mm
Pressure Rating: Class 600 LB, PN100
End Connection: RTJ Flanged
Surface Finish: Blackening
