Key Specifications / Features
A reliable Grooved Butterfly Valve supplier offers valves designed to MSS SP-67 standards with AWWA C606 groove connections and an ISO 5211 top flange for actuator compatibility. Rated for a working pressure of 300 PSI, these valves feature a fusion-bonded epoxy coating for superior corrosion resistance, ensuring durability in demanding applications.
- Model No.: LD-20241210-BFV-01
- Hits: 29
- Categories: Butterfly Valves
- Tags: Grooved Butterfly Valve, MSS SP-67 Butterfly Valve, 300 PSI Butterfly Valve
Detail Information

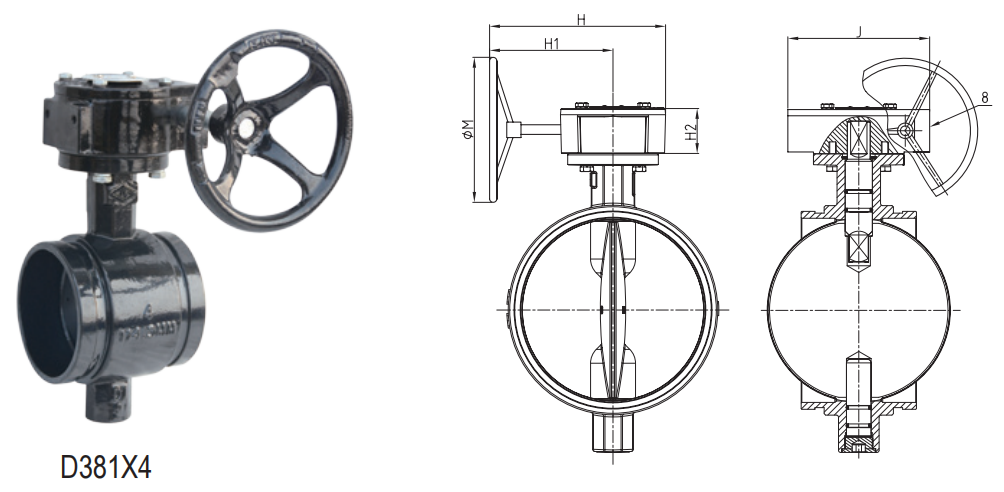

Product Item: MSS SP-67 Grooved Butterfly Valve
Design Standard: MSS SP-67
Connection Ends: Groove to AWWA C606
Top Flange Standard: ISO 5211
Stem drive by keys, parallel or diagonal square or flat head
Working Pressure: 300 PSI
175 PSI, 200 PSI and 250 PSI available upon request
Temperature Range: 0℃ to 80℃
Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550 or painting upon request
