Key Specifications / Features

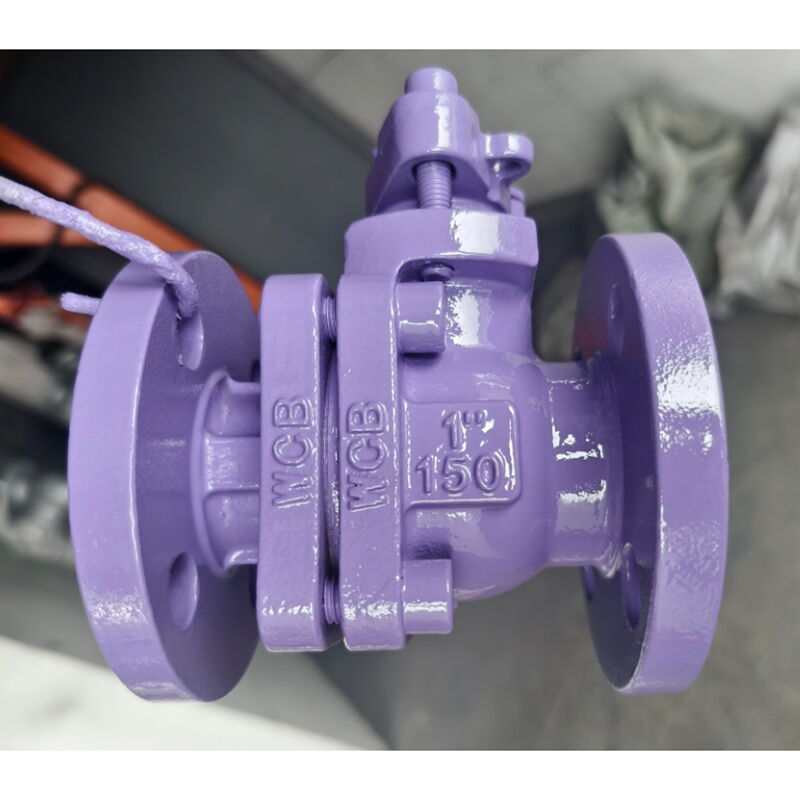

The China PTFE Lined Ball Valve Plant offers a high-quality 25 mm ball valve, featuring an ASTM A216 WCB body and ball, PTFE seat ring and packing, with a 1-inch, DN25 size, Class 150 LB rating, and RF flanged ends. These valves are designed for excellent corrosion resistance and reliable performance in various industrial applications, such as chemical processing and pharmaceutical plants.
- Model No.: LD-20251107-BAV-01
- Hits: 6
- Categories: Ball Valves
- Tags: PTFE Lined Ball Valve, ASTM A216 WCB Ball Valve, 1 Inch Ball Valve
Detail Information

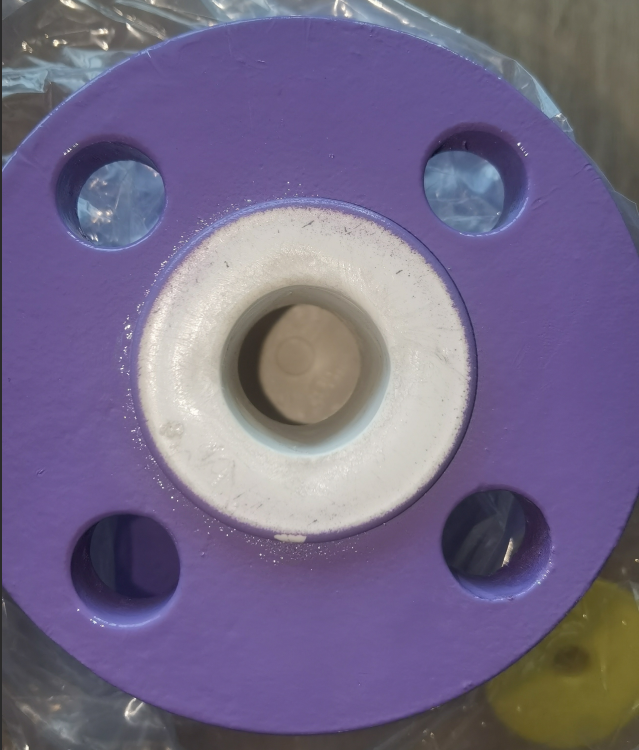

Product Name: PTFE Lined Ball Valve
Body Material: ASTM A216 WCB + PTFE Lining
Ball Material: ASTM A216 WCB + PTFE Lining
Seat Ring: PTFE
Packing: PTFE
Size: 1 Inch, DN25, 25 mm
Pressure Rating: Class 150 LB
End Connection: RF Flanged, ASME B16.5
Design Standard: ASME B16.34
Painting Color: RAL 4005, DFT 200 μm
