Key Specifications / Features
PVDF True Union Ball Valve Manufacturer: True Union Ball Valves, Plastic PVDF, 1/2-4 Inch, DN15-DN100, 150 PSI, ANSI, DIN, JIS, CNS, PT, NPT, BSPF Threaded.
- Hits: 106
- Categories: Ball Valves, Plastic Valves
- Tags: PVDF Ball Valves, 1/2 Inch Ball Valve, 4 Inch Ball Valve
Detail Information

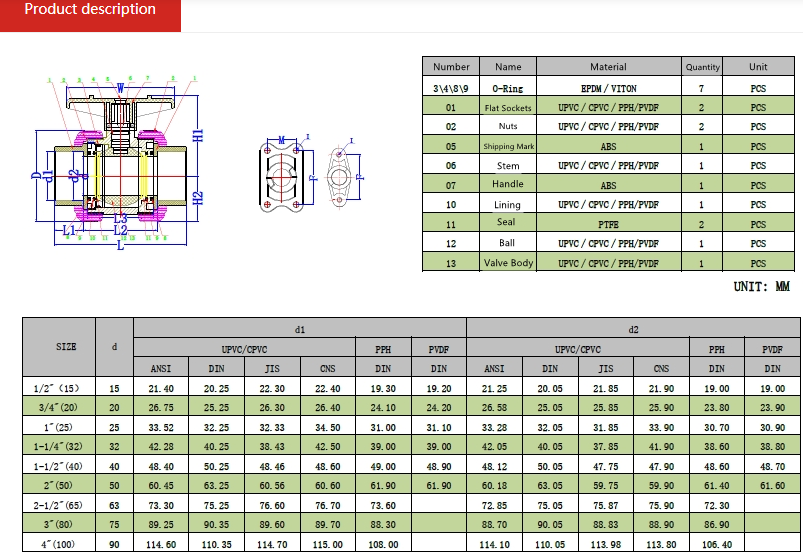

PVDF True Union Ball Valve
SIZE: 1/2 Inch - 4 Inch, DN15-DN100
Material: PVDF
Joint End Type 1: Socket (ANSI, DIN, JIS, CNS)
Joint End Type 2: Threaded (PT, NPT, BSPF)
Working Pressure: 150 PSI
Components: EPDM, VITON O-Rings; UPVC, CPVC, PPH, PVDF Flat Sockets; UPVC, CPVC, PPH, PVDF Nuts; ABS Shipping Mark; UPVC, CPVC, PPH, PVDF Stem; ABS Handle; UPVC, CPVC, PPH, PVDF Lining; PTFE Seals; UPVC, CPVC, PPH, PVDF Ball; UPVC, CPVC, PPH, PVDF Valve Body
SIZE: 1/2 Inch - 4 Inch, DN15-DN100
Material: PVDF
Joint End Type 1: Socket (ANSI, DIN, JIS, CNS)
Joint End Type 2: Threaded (PT, NPT, BSPF)
Working Pressure: 150 PSI
Components: EPDM, VITON O-Rings; UPVC, CPVC, PPH, PVDF Flat Sockets; UPVC, CPVC, PPH, PVDF Nuts; ABS Shipping Mark; UPVC, CPVC, PPH, PVDF Stem; ABS Handle; UPVC, CPVC, PPH, PVDF Lining; PTFE Seals; UPVC, CPVC, PPH, PVDF Ball; UPVC, CPVC, PPH, PVDF Valve Body
