Key Specifications / Features
The China Single Sphere Rubber Flexible Joint features a range of sizes from 1-1/4 inch to 24 inch (DN32-DN600), designed to handle pressures up to 300 PSI. It is equipped with electroplated carbon steel flanges for added strength and corrosion resistance. The joint's EPDM rubber bellows provide flexibility and durability.
- Model No.: LD-20250205-PJ-01
- Hits: 14
- Categories: Joints
- Tags: Single Sphere Pipe Joint, EPDM Pipe Joint, Rubber Flexible Joint
Detail Information
Product Item: Single Sphere Rubber Flexible Joint

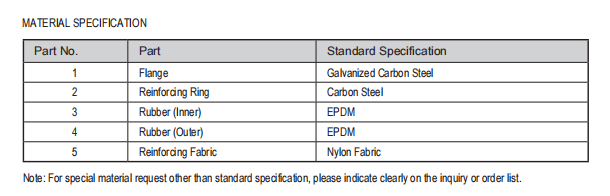

Flange Material: Electroplated Carbon Steel
Bellows Material: EPDM Rubber

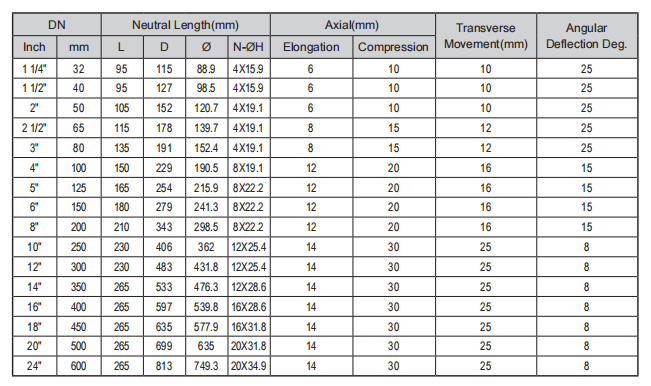

Size Range: 1-1/4 Inch - 24 Inch, DN32-DN600
Working Pressure: 300 PSI (175 PSI, 200 PSI, and 250 PSI available upon request)
Connection Ends: Flange Drilling to ASME B16.5 Class 150 LB

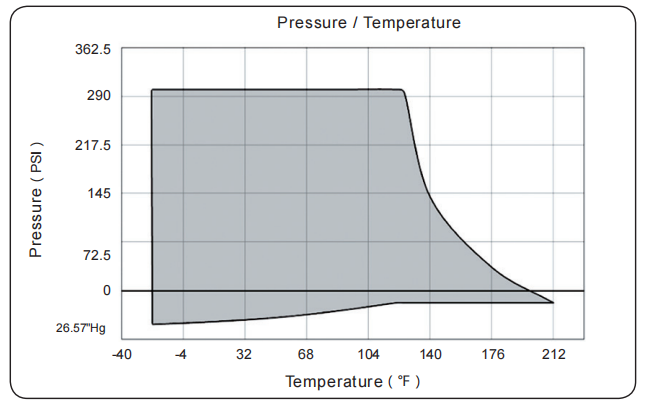

Temperature Range: 0°C to 80°C
Vacuum Capacity: 700 mm/Hg
