Key Specifications / Features

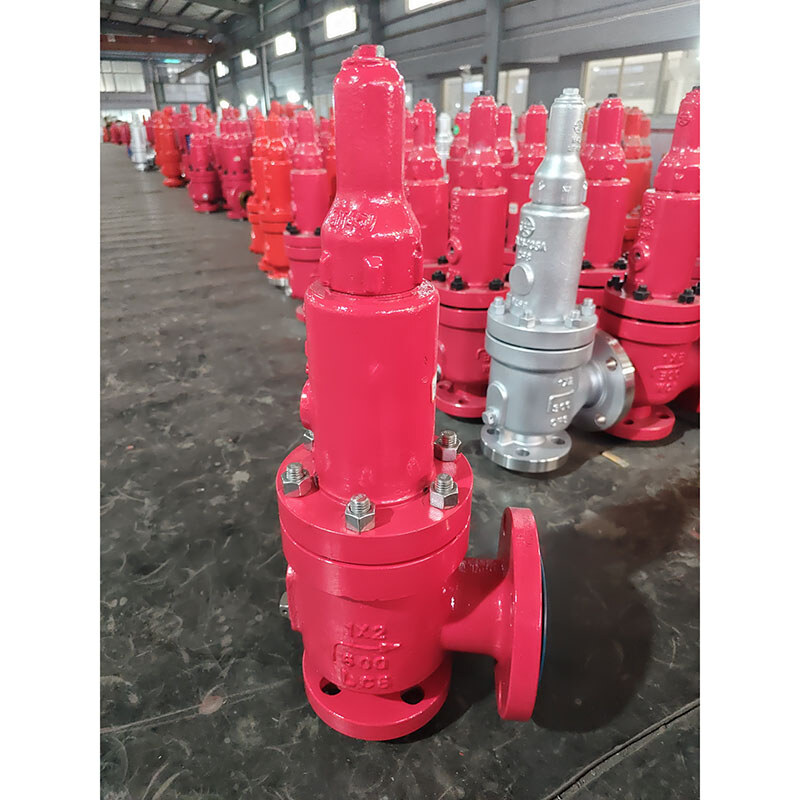

This spring-type safety valve features an ASTM A352 LCB carbon steel body for reliable low-temperature toughness in process applications. It is built to API 526 standards for consistent set pressure and flow capacity. The disc combines SS 316L with STL 6 facing for corrosion resistance and durable metal-to-metal seating. It has a 1 inch inlet and a 2 inch outlet for proper pressure relief and discharge handling.
- Model No.: LD-20260601-SV-01
- Hits: 0
- Categories: Safety Valves
- Tags: API 526 Safety Valve, Spring Type Safety Valve, ASTM A352 LCB Safety Valve
Detail Information
Product Name: Spring Type Safety Valve
Type: Ordinary Spring Type Safety Valve
Standard: API 526
Size and Pressure Rating:
Inlet: 1 Inch, Class 600 LB, RTJ
Outlet: 2 Inch, Class 150 LB, RF
Set Pressure: 6.6 MPa
Operating Pressure: 5.0 MPa
Body Material: ASTM A352 LCB
Disc Material: SS 316L + STL 6
Nozzle Material: SS 316L + STL 6
Spring Material: 50CrVA
