Key Specifications / Features

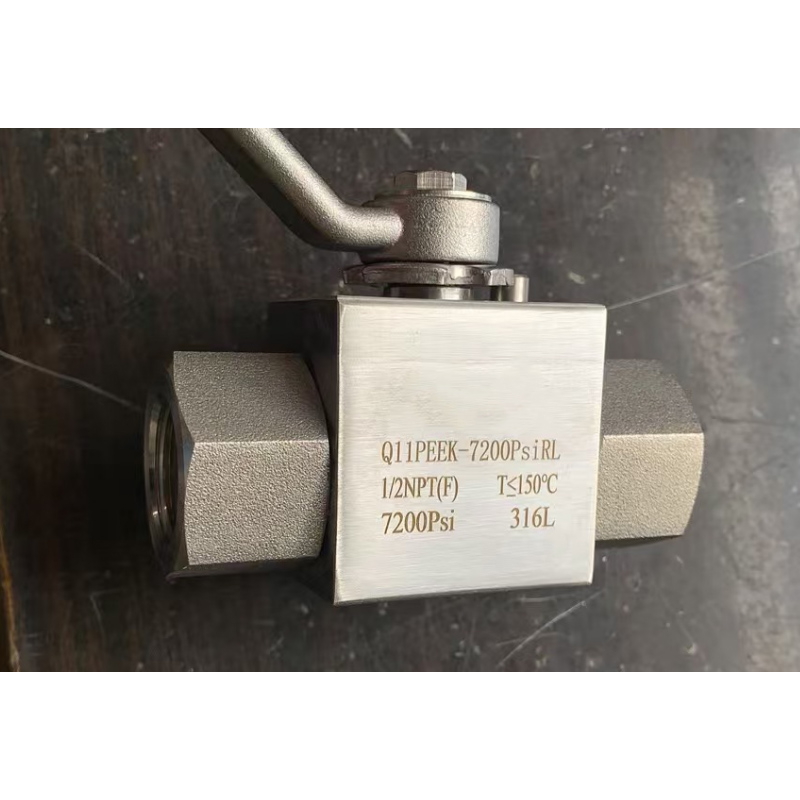

This DN15 (1/2 inch) ball valve, crafted from corrosion-resistant SS 316L stainless steel, is engineered for demanding high-pressure applications up to 7200 PSI. It features a durable PEEK seat for superior chemical and thermal resistance and includes a practical lever with a locking device for secure operation. The 15 mm valve body is completed with female NPT (FNPT) threaded ends for a robust, leak-tight connection in critical piping systems.
- Model No.: LD-20260210-BAV-01
- Hits: 6
- Categories: Ball Valves
- Tags: SS 316L Ball Valve, 7200 PSI Ball Valve, 1/2 Inch Ball Valve
Detail Information
Product Name: SS 316L Ball Valves
Type: Ball Valve
Size: 1/2 Inch, DN15, 15 mm
Pressure Rating: 7200 PSI
Body Material: SS 316L Stainless Steel
Ball Material: SS 316L
Seat Material: PEEK
Operator: Lever with Locking Device
End Connection: FNPT
Working Temperature: ≤150°C
