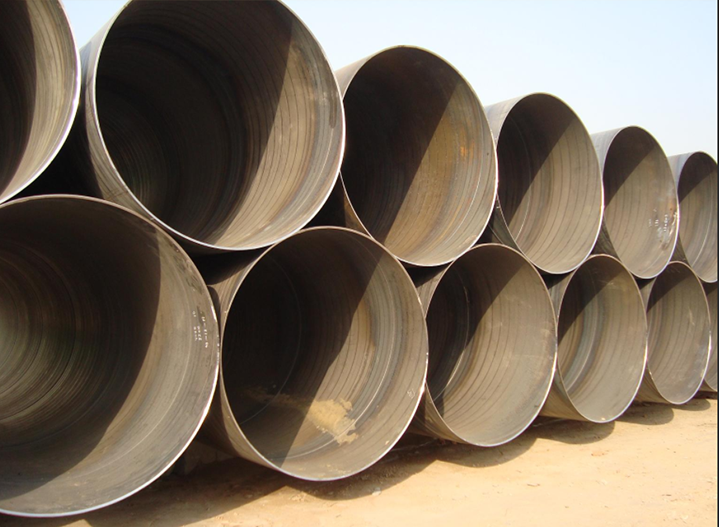

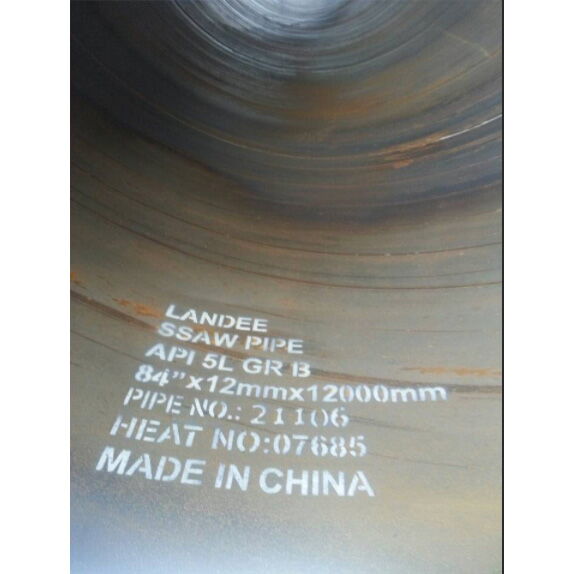

SSAW Steel Pipes, API 5L Gr.B, 84 Inch, OD 2133.6 mm, 12 M

Key Specifications / Features

Our China SSAW Steel Pipes Supplier specializes in providing high-quality spiral welded and HSAW (Submerged Arc Welded) pipes. These pipes are manufactured to API 5L Grade B standards, ensuring durability and reliability. They feature an outer diameter of 2133.6 mm and a wall thickness of 12 mm, with a standard length of 12 meters. Customization options are available to meet specific client requirements, making them suitable for a variety of industrial applications.

Model No.: LD-20251120-OP-01
Hits: 0
Categories: Other Pipes
Tags: API 5L Grade B Steel Pipe, SSAW Steel Pipe, 84 Inch Steel Pipe

Request a quote

Detail Information

Product Name: SSAW Steel Pipe, Spiral Welded Pipe, HSAW Pipe
Type: SSAW Pipe
Material: API 5L Grade B
Size: 84 Inch, OD 2133.6 mm
Wall Thickness: 12 mm
Length: 12 Meters

Product Range

Specifications:
Outer Diameter: 219 mm – 2540 mm
Wall Thickness: 5.0 – 25.4 mm
Length: 6 m / 12 m / 18 m (customizable)
Standard and Steel Grade:
API SPEC 5L (PSL1/PSL2): API 5L Grade B, X42, X52, X60, X65, X70
EN 10217 / EN 10219: S235JR, S355J0, S355J2
Ends: Plain Ends, Bevelled Ends (30°±5°), Flange Welded
Surface Treatment: Bare, Black Painting, FBE, 3LPE, 3LPP, Galvanized
Applications:
Oil and Gas: Water injection lines, gathering lines, low-pressure transmission lines
Water Infrastructure: Drainage pipelines, river crossing pipelines, municipal sewerage systems
Structures: Piling pipes, bridge supports, temporary building frames
Industry: HVAC piping, coal slurry transportation, mine ventilation
Special: Wind turbine tower columns, agricultural irrigation
