Key Specifications / Features

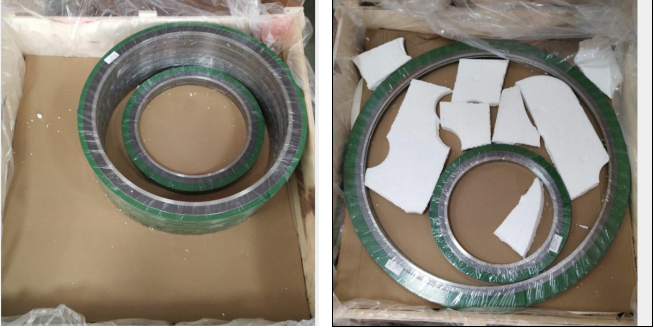

Looking for high-quality SPIRAL WOUND GASKETS? Our stainless steel expanded graphite gaskets, rated for Class 150, are built to last. Designed to BS 3381 specifications with windings made from ASTM A240 Type 316, these gaskets also feature a centering ring made from ASTM A285 Grade C and an inner ring made from ASTM A240 Type 316L. Designed for use with flanges conforming to ASME B16.5 and BS 1560 standards, our gaskets feature a raised face flange and are sized at 20 inches. Trust us for reliable, long-lasting gaskets that will help you get the job done right.
- Hits: 162
- Categories: Gaskets
- Tags: Stainless Steel Gasket, Spiral Wound Gasket, SW Gasket
Detail Information
SPIRAL WOUND GASKETS; Stainless steel expanded graphite, Class 150; Design spec: BS 3381, Mat. Spec. windings: ASTM A240 Type 316. Centering ring: ASTM A285 Grade C, inner ring: ASTM A240 type 316L, Design spec flange(s): ASME B16.5 BS 1560. Facing flange: Raised face. Size 20 inch
Product Item: Spiral Wound Gaskets
Material: Stainless Steel
Size: 20 Inch, DN500
Pressure: Class 150 LB, PN20
Design: BS 3381
Material: ASTM A240 Type 316
Centering ring: ASTM A285 Grade C
Inner ring: ASTM A240 type 316L
Design spec flange: ASME B16.5, BS 1560
Facing flange: Raised face
Product Item: Spiral Wound Gaskets
Material: Stainless Steel
Size: 20 Inch, DN500
Pressure: Class 150 LB, PN20
Design: BS 3381
Material: ASTM A240 Type 316
Centering ring: ASTM A285 Grade C
Inner ring: ASTM A240 type 316L
Design spec flange: ASME B16.5, BS 1560
Facing flange: Raised face
