Key Specifications / Features
UPVC Swing Check Valve Provider: UPVC Swing Type Check Valves, 4-6 Inch, DN100-DN150, 150 PSI, ANSI, DIN, JIS, CNS Socket End, PT, NPT, BSPF Threaded End.
- Hits: 213
- Categories: Check Valves, Plastic Valves
- Tags: UPVC Check Valve, 6 Inch Check Valve, Swing Check Valve
Detail Information

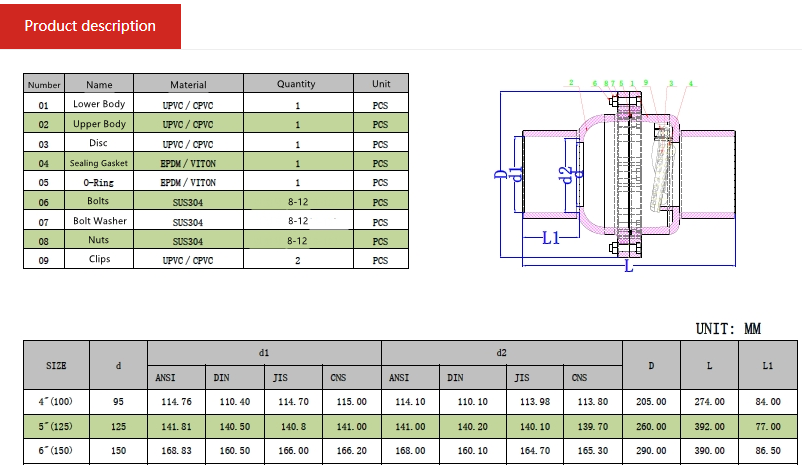

UPVC Swing Type Check Valve
SIZE: 4 Inch - 6 Inch, DN100-DN150
Joint End Type 1: Socket (ANSI, DIN, JIS, CNS)
Joint End Type 2: Threaded (PT, NPT, BSPF)
Working Pressure: 150 PSI
Component: UPVC, CPVC lower body; UPVC, CPVC upper body; UPVC, CPVC disc; EPDM, VITON sealing gasket; EPDM, VITON O-Ring; SUS 304 bolt; SUS 304 bolt washer; SUS 304 NUT; UPVC, CPVC clips
SIZE: 4 Inch - 6 Inch, DN100-DN150
Joint End Type 1: Socket (ANSI, DIN, JIS, CNS)
Joint End Type 2: Threaded (PT, NPT, BSPF)
Working Pressure: 150 PSI
Component: UPVC, CPVC lower body; UPVC, CPVC upper body; UPVC, CPVC disc; EPDM, VITON sealing gasket; EPDM, VITON O-Ring; SUS 304 bolt; SUS 304 bolt washer; SUS 304 NUT; UPVC, CPVC clips
