Key Specifications / Features

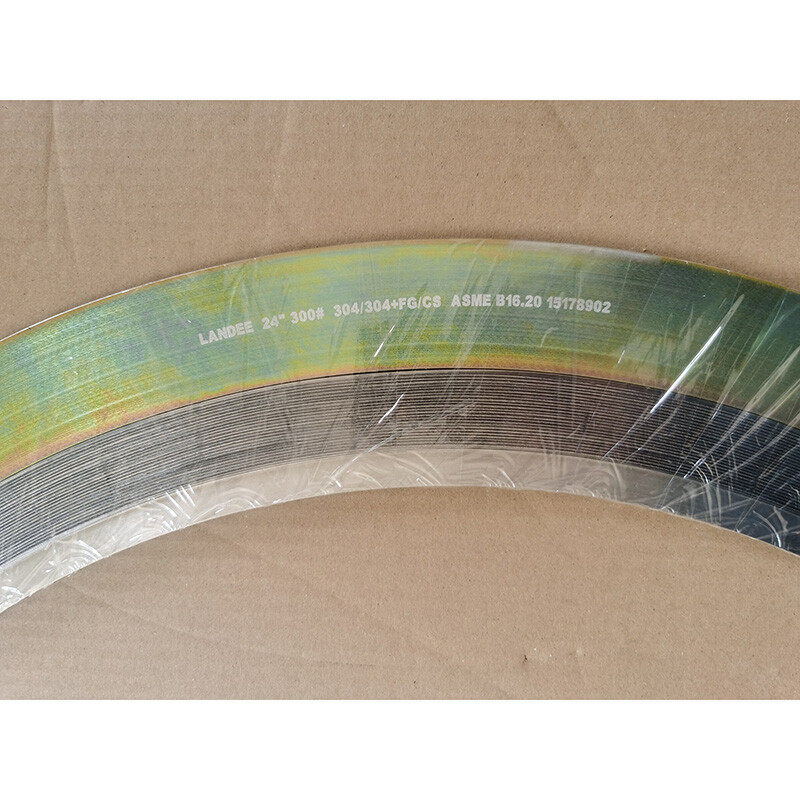

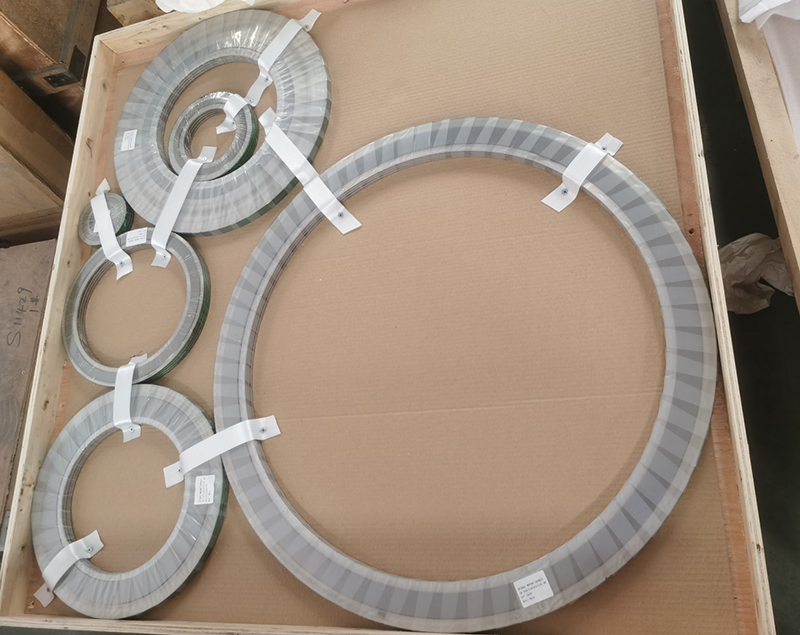

ASME B16.20 spiral wound gaskets are widely used in oil, gas, and petrochemical applications for reliable sealing under high pressure and temperature. This specific gasket features a stainless steel 304 inner ring for corrosion resistance and a carbon steel outer ring for structural support and centering. The flexible graphite filler provides excellent thermal stability and chemical compatibility. Sized at 24 inches with a 300 LB pressure class and 4.5 mm thickness, it meets standard flange dimensions for large-diameter piping systems.
- Model No.: LD-20260518-SWG-01
- Hits: 0
- Categories: Gaskets
- Tags: ASME B16.20 Gasket, Spiral Wound Gasket, 24 Inch Gasket
Detail Information
Product Name: ASME B16.20 Spiral Wound Gaskets
Type: Spiral Wound Gasket
Standard: ASME B16.20
Inner Ring Material: SS 304
Outer Ring Material: Carbon Steel
Filler Material: Graphite
Size: 24 Inch
Pressure Rating: Class 300 LB
Thickness: 4.5 mm
