Key Specifications / Features

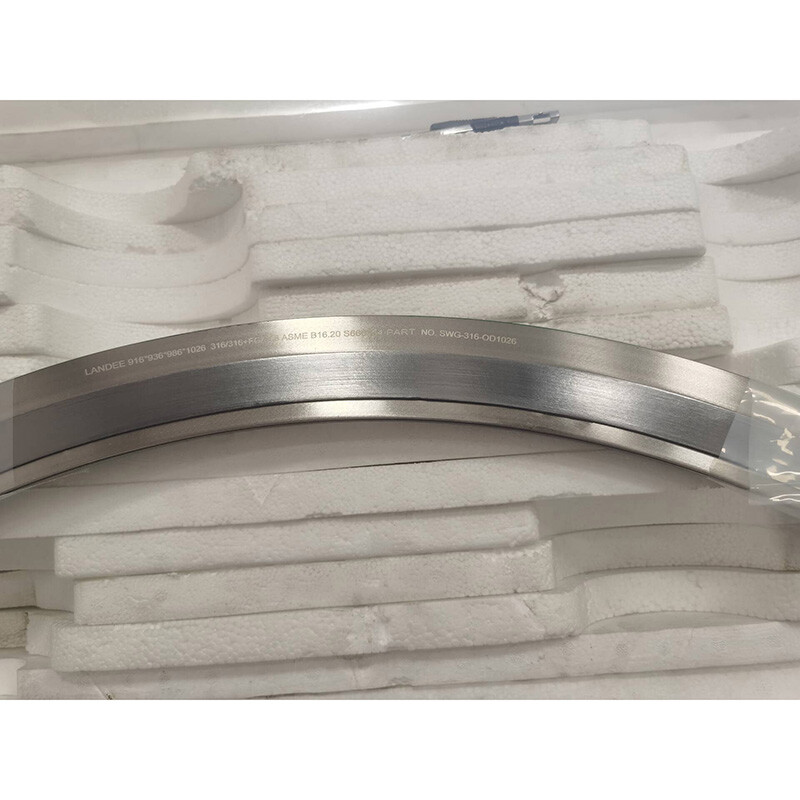

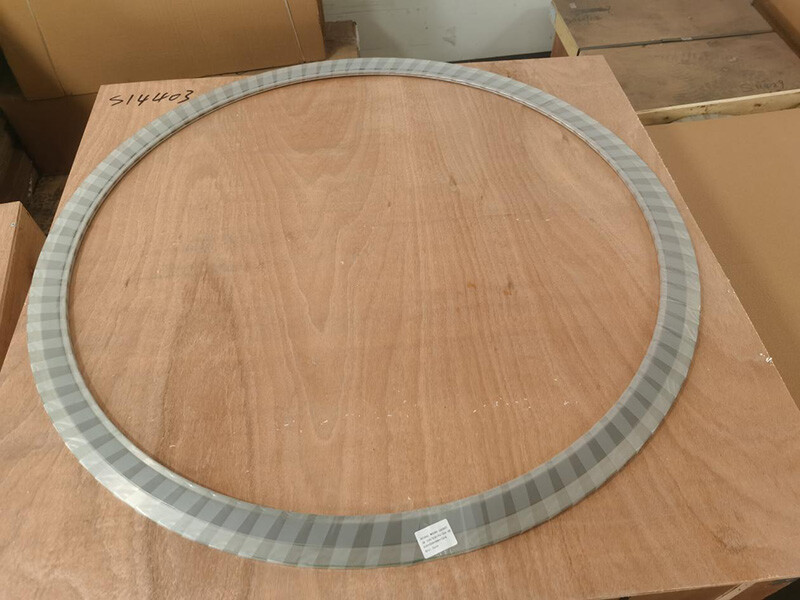

This spiral wound gasket meets ASME B16.20 standards. It uses SS 316 stainless steel for both inner and outer rings. The sealing element combines a spirally wound metal with graphite filler material. The gasket measures 1026 mm in outer diameter and 916 mm in inner diameter. Its thickness is 4 mm. This product is suited for high-temperature and high-pressure flanged connections in oil, gas, and chemical processing systems.
- Model No.: LD-20260515-SWG-01
- Hits: 0
- Categories: Gaskets
- Tags: ASME B16.20 Gasket, Spiral Wound Gasket, SS 316 Gasket
Detail Information
Product Name: SS 316 Spiral Wound Gaskets
Type: Spiral Wound Gasket
Standard: ASME B16.20
Dimensions: OD 1026 mm * ID 916 mm
Thickness: 4 mm
Inner Ring Material: SS 316
Outer Ring Material: SS 316
Filler Material: Graphite
