ASTM A126B Non Rising Stem Gate Valve Supplier: Cast Iron ASTM A126B Gate Valves, Non-Rising, MSS SP-70, API 598, 2 - 16 Inch, Solid Wedge, Flanged Ends.
- Hits: 123
- Categories: Gate Valves
- Tags: Non Rising Stem Gate Valve, API 598 Gate Valve, MSS SP-70 Gate Valve
Detail Information
Cast Iron Non-Rising Stem Gate Valve Solid Wedge Flanged Ends
Design Standard: MSS SP-70
Flanges drilled: ANSI B16.1 (125lb, 150lb)

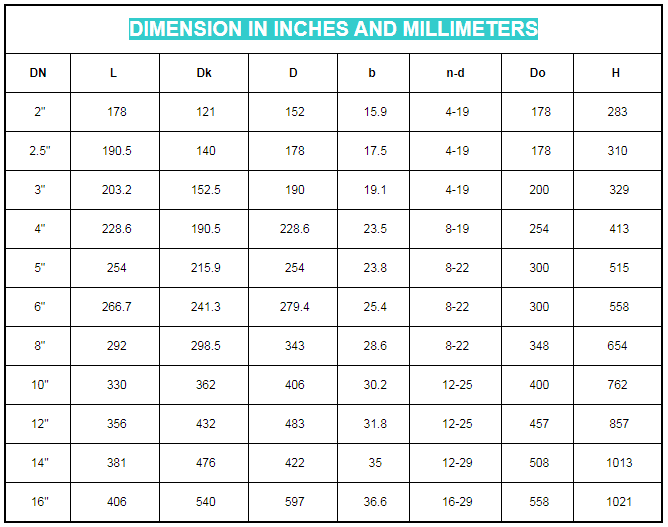

Face to face dimensions: ANSI B 16.10 (125lb, 150lb)
Working pressure: 125S 200WOG
Suitable media: water, oil, gas
Body, bonnet, disc: ASTM A126B
Stem: brass ASTM B16, stainless steel
Trim: cast bronze ASTM B62, stainless steel
Size: 2 Inch - 16 Inch, DN50-DN400
Pressure test: MSS SP-70, API 598
Design Standard: MSS SP-70
Flanges drilled: ANSI B16.1 (125lb, 150lb)
Face to face dimensions: ANSI B 16.10 (125lb, 150lb)
Working pressure: 125S 200WOG
Suitable media: water, oil, gas
Body, bonnet, disc: ASTM A126B
Stem: brass ASTM B16, stainless steel
Trim: cast bronze ASTM B62, stainless steel
Size: 2 Inch - 16 Inch, DN50-DN400
Pressure test: MSS SP-70, API 598
