Key Specifications / Features
Cast Iron Rising Stem Gate Valve Manufacturer: Cast Iron Gate Valves, Rising Stem, ASTM A126B, Solid Wedge, Flanged Ends, 2-16 Inch, 125S, 200WOG.
- Hits: 201
- Categories: Gate Valves
- Tags: Cast Iron Valves, API 598 Gate Valve, MSS SP-70 Gate Valve
Detail Information
Cast Iron Rising Stem Gate Valve Solid Wedge Flanged Ends
1. Design Conforms to MSS SP-70
2. Flanges drilled to ANSI B16.1 (125lb, 150lb)

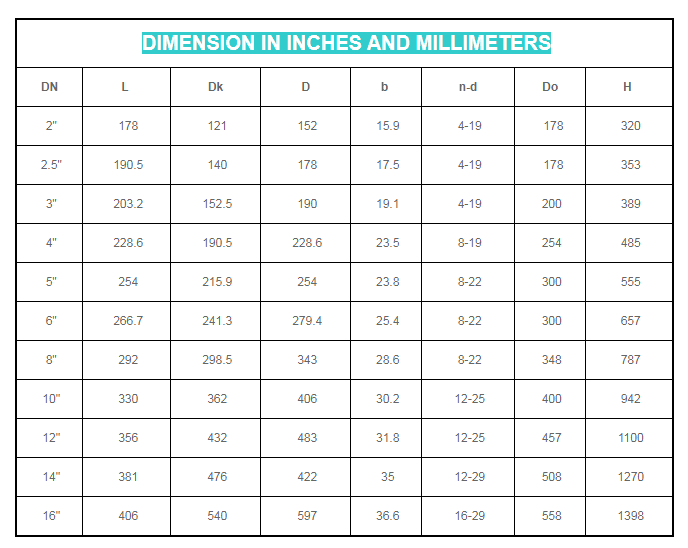

3. Face to face dimensions conform to ANSI B 16.10 (125lb, 150lb)
4. Working pressure: 125S, 200WOG
5. Suitable media: water, oil, gas
6. Body, bonnet, disc: ASTM A126B
7. Stem: brass ASTM B16, stainless steel
8. Trim: cast bronze ASTM B62, stainless steel
9. Size: from 2 Inch to 16 Inch, DN50-DN400
10. Pressure test: MSS SP-70 or API 598
1. Design Conforms to MSS SP-70
2. Flanges drilled to ANSI B16.1 (125lb, 150lb)
3. Face to face dimensions conform to ANSI B 16.10 (125lb, 150lb)
4. Working pressure: 125S, 200WOG
5. Suitable media: water, oil, gas
6. Body, bonnet, disc: ASTM A126B
7. Stem: brass ASTM B16, stainless steel
8. Trim: cast bronze ASTM B62, stainless steel
9. Size: from 2 Inch to 16 Inch, DN50-DN400
10. Pressure test: MSS SP-70 or API 598
