Key Specifications / Features
Buy high-quality Through Conduit Slab Gate Valve from a trusted manufacturer. Our valves are made from ASTM A216 WCB material and are available in a 24-inch size (DN600). They are designed to withstand high pressure with a Class 600 LB rating (PN100) and are compliant with API 6D standards. We offer a wide range of sizes from 2 to 72 inches, suitable for various applications and pressure requirements (Class 150-2500 LB). Our valves come in different end connections including RF, RTJ, and BW. Trust our reliable valves for efficient and safe flow control. Order now!
- Hits: 83
- Categories: Gate Valves
- Tags: ASTM A216 WCB Gate Valve, Through Conduit Gate Valves, Slab Gate Valve
Detail Information

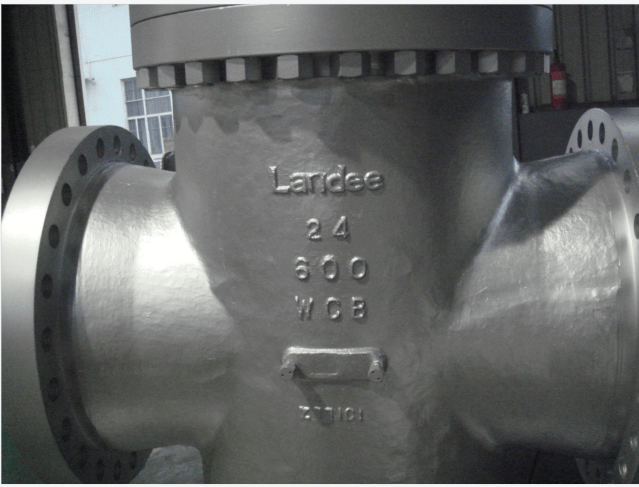

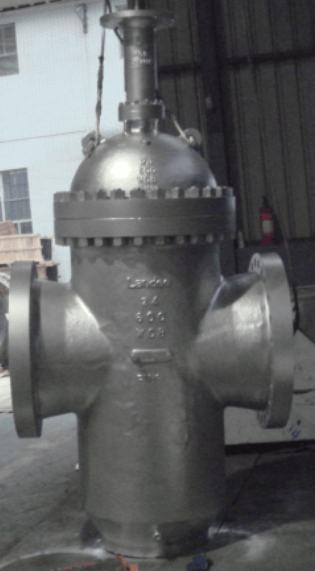

Product Item: Through Conduit Slab Gate Valve
Size: 24 Inch, DN600
Pressure: Class 600 LB, PN100
Material: ASTM A216 WCB
Standard: API 6D
Application: API 6D Through conduit gate valves are typically suitable for wet, sour, liquid or gaseous hydrocarbon services. It is widely applicable for transmission pipeline systems of natural gas, oil products and chemical engineering.
Technical specification
Design & manufacturing standard as per API 6D
Face-to-face standard as per ASME B16.10 / API 6D
Fanged ends standard as per ASME B16.5 / MSS-SP-44
Testing & inspection standard as per API 598 / API 6D
Product Range
Body material: Carbon steel, Stainless steel, Alloy steel, Monel, Duplex, Inconel
Size range (s): 2 - 72 Inch
Pressure rating: Class 150-2500 LB
End connection: RF, RTJ, BW
Working temperature: -46℃ - +200℃
Mode of operation: Handwheel, gearbox, Electric, Pneumatic, etc.
Size: 24 Inch, DN600
Pressure: Class 600 LB, PN100
Material: ASTM A216 WCB
Standard: API 6D
Application: API 6D Through conduit gate valves are typically suitable for wet, sour, liquid or gaseous hydrocarbon services. It is widely applicable for transmission pipeline systems of natural gas, oil products and chemical engineering.
Technical specification
Design & manufacturing standard as per API 6D
Face-to-face standard as per ASME B16.10 / API 6D
Fanged ends standard as per ASME B16.5 / MSS-SP-44
Testing & inspection standard as per API 598 / API 6D
Product Range
Body material: Carbon steel, Stainless steel, Alloy steel, Monel, Duplex, Inconel
Size range (s): 2 - 72 Inch
Pressure rating: Class 150-2500 LB
End connection: RF, RTJ, BW
Working temperature: -46℃ - +200℃
Mode of operation: Handwheel, gearbox, Electric, Pneumatic, etc.
