Key Specifications / Features

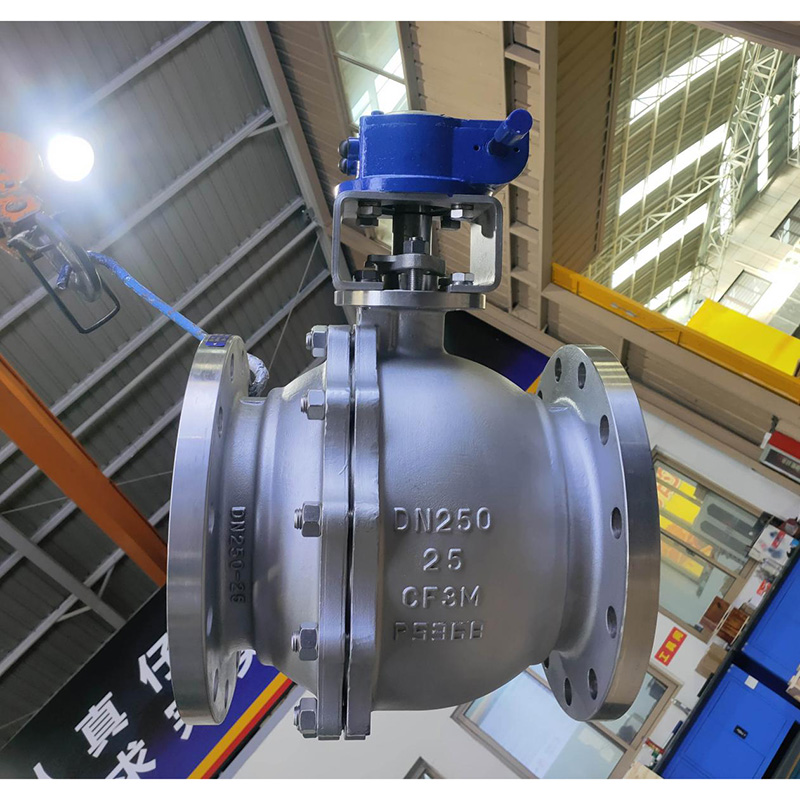

The ASTM A351 CF3M Ball Valve is a robust 250 mm split body design featuring full bore configuration. Constructed with CF3M (316L) stainless steel body and ASTM A182 F316L stainless steel ball, it delivers superior corrosion resistance for demanding chemical, petrochemical, and marine applications. The valve meets API 6D pipeline specifications and is rated for DN250/PN25 service with RF (Raised Face) flanged end connections. RPTFE (Reinforced Polytetrafluoroethylene) seats ensure reliable sealing.
- Model No.: LD-20260325-BAV-01
- Hits: 0
- Categories: Ball Valves
- Tags: ASTM A351 CF3M Ball Valve, Full Bore Ball Valve, DN250 Ball Valve
Detail Information
Product Name: ASTM A351 CF3M Ball Valves
Type: Ball Valve, Full Bore, Split Body
Design Standard: API 6D
Body Material: ASTM A351 CF3M
Ball Material: ASTM A182 F316L
Seat Material: RPTFE
Size: 10 Inch, DN250, 250 mm
Pressure Rating: PN25, Class 300 LB
End Connection: RF Flanged to ASME B16.5
Operation: Gear Operated
