Key Specifications / Features

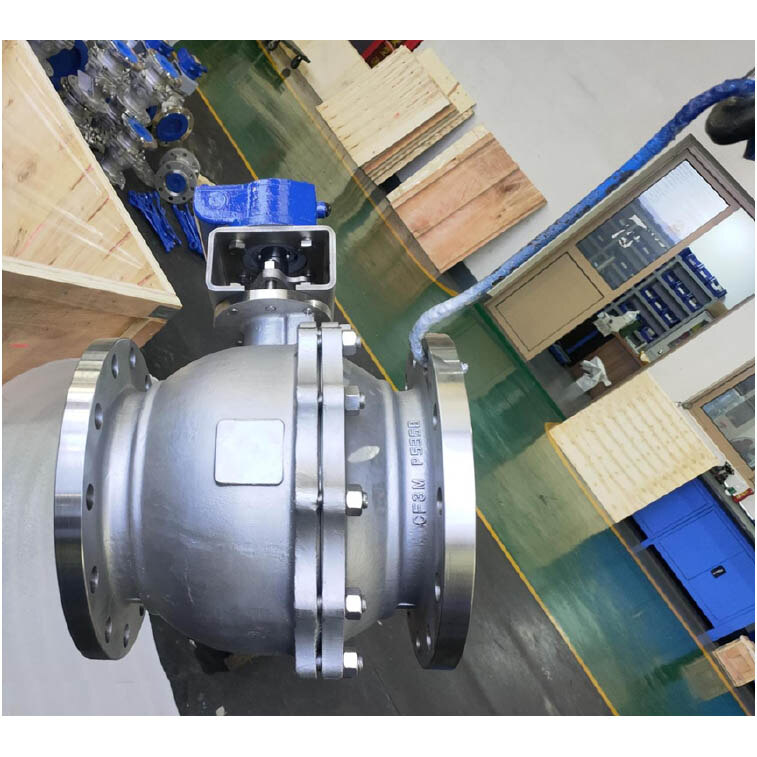

This split body ball valve features a 250 mm (10 inch / DN250) bore and is built from ASTM A351 CF3M stainless steel for strong corrosion resistance. The floating or trunnion ball is made from ASTM A182 F316L for smooth operation and long service life. It meets API 6D pipeline valve standards. The pressure rating is PN25 and Class 300 LB. Raised face flanged ends allow easy installation and removal from piping systems.
- Model No.: LD-20260513-BAV-01
- Hits: 0
- Categories: Ball Valves
- Tags: ASTM A351 CF3M Ball Valve, 10 Inch Ball Valve, API 6D Ball Valve
Detail Information
Product Name: ASTM A351 CF3M Ball Valve
Type: Ball Valve, Split Body, Full Bore
Standard: API 6D
Size: 10 Inch, DN250, 250 mm
Pressure Rating: PN25, Class 300 LB
Body Material: ASTM A351 CF3M
Ball Material: ASTM A182 F316L
Seat Material: RPTFE
End Connection: RF Flanged (Raised Face) to ASME B16.5
Operation: Gear Operated
