Key Specifications / Features

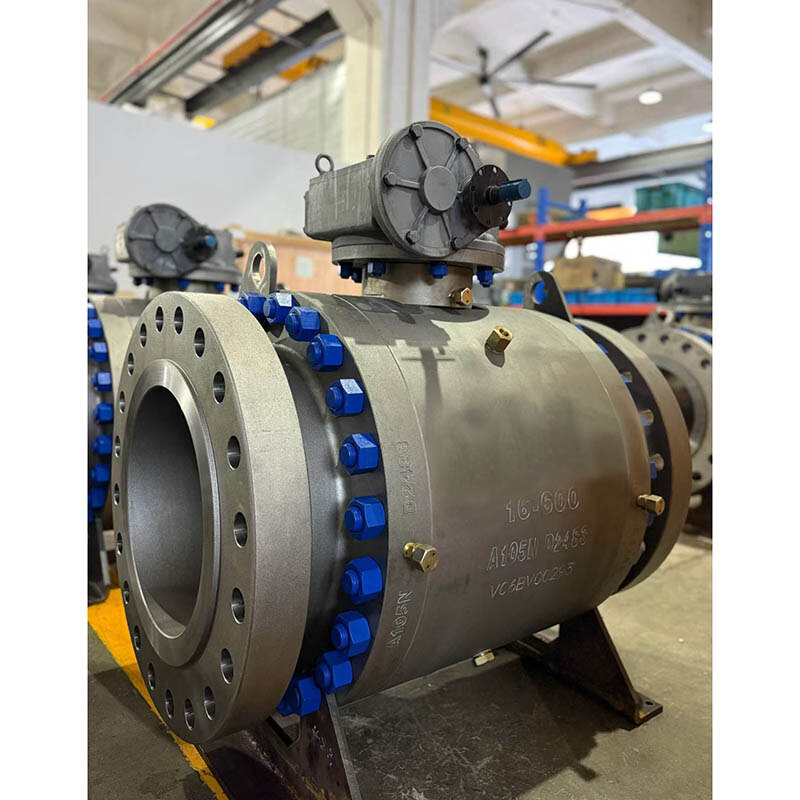

This API 6D trunnion mounted ball valve features a 16-inch full bore design. The body is forged from ASTM A105N carbon steel. The ball is made from ASTM A182 F316L stainless steel for corrosion resistance. It is rated for Class 600 LB pressure service. The valve comes with RF flanged ends for standard pipeline installation. The trunnion design ensures stable operation under high pressure and large bore conditions.
- Model No.: LD-20260512-BAV-02
- Hits: 0
- Categories: Ball Valves
- Tags: Trunnion Mounted Ball Valve, 16 Inch Ball Valve, ASTM A105N Ball Valve
Detail Information
Product Name: API 6D Trunnion Mounted Ball Valve
Type: Trunnion Mounted Ball Valve
Bore: Full Bore
Standard: API 6D
Size: 16 Inch, DN400, 400 mm
Pressure Rating: Class 600 LB, PN100
Body Material: ASTM A105N
Ball Material: ASTM A182 F316L
Seat Material: Stellite 6
End Connection: RF Flanged
