Key Specifications / Features

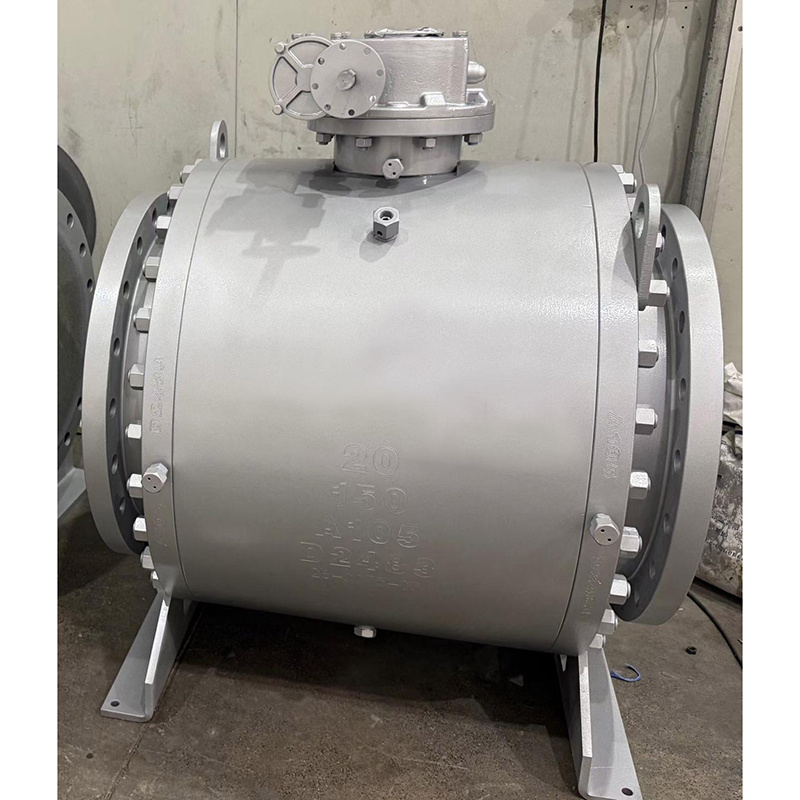

This trunnion mounted ball valve features a 500 mm full bore design. The body is forged from ASTM A105 carbon steel. It measures 20 inches (DN500) and is rated for Class 150 LB (PN20) pressure. The valve comes with RF flanged ends for secure pipeline connection. The trunnion design supports the ball and reduces operating torque under high pressure. It is suitable for on-off control in oil, gas, and industrial process lines. The full bore construction minimizes flow resistance and pressure drop.
- Model No.: LD-20260512-BAV-01
- Hits: 0
- Categories: Ball Valves
- Tags: ASTM A105 Ball Valve, Trunnion Mounted Ball Valve, 20 Inch Ball Valve
Detail Information
Product Name: ASTM A105 Trunnion Mounted Ball Valves
Type: Trunnion Mounted Ball Valve
Bore: Full Bore
Size: 20 Inch, DN500, 500 mm
Pressure Rating: Class 150 LB, PN20
Body Material: ASTM A105
Ball Material: ASTM A105 + ENP
Seat Material: RPTFE
End Connection: RF Flanged
