Key Specifications / Features

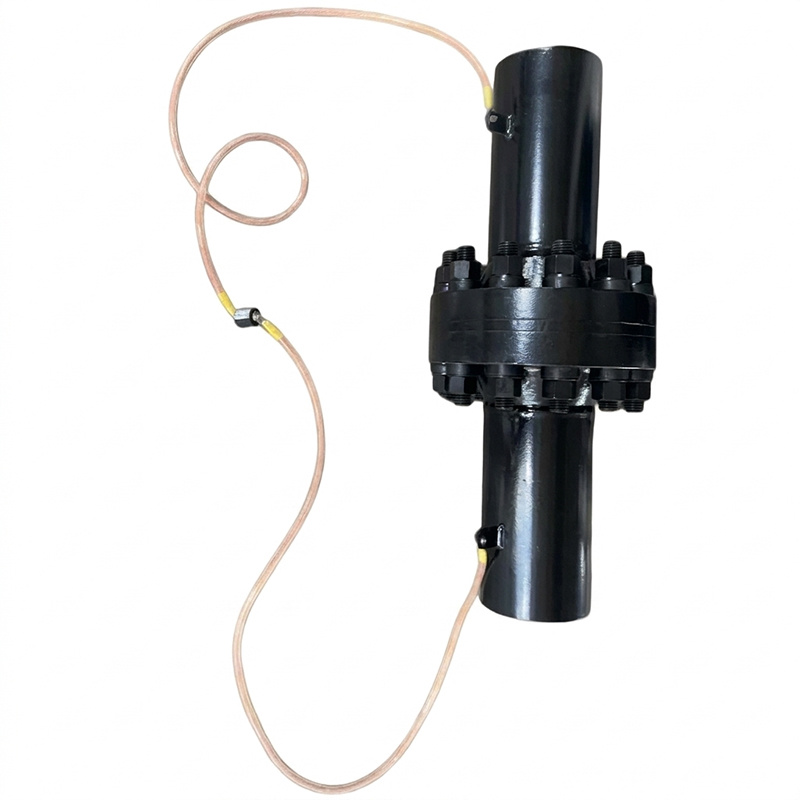

Flange insulation joints are specialized piping components designed to prevent electrical continuity and galvanic corrosion between pipeline sections. This model features an integrated jumper cable for cathodic protection monitoring, combining an insulating gasket with a grounding bypass. Built to API 5L Grade B and ASTM A105 specifications, it uses carbon steel construction rated for 6-inch pipe (DN150) at Class 600 LB (PN100) pressure.
- Model No.: LD-20260430-PJ-01
- Hits: 0
- Categories: Joints
- Tags: Insulation Joint, 6 Inch Pipe Joint, Carbon Steel Pipe Joints
Detail Information
Product Name: Carbon Steel Insulation Joint
Type: Insulation Flange, Joint with Jumper Cable
Material: API 5L Grade B / ASTM A105
Size: 6 Inch
Pressure Rating: Class 600 LB
Application: Cathodic Protection / Pipeline Electrical Isolation Systems
